H-4NP-BOX
Standard H-4NP Joints - Box (150 Units)
$0.00
Fast Shipping quote upon checkout
Out of stock
Various payment methods available
Ready for dispatch upon order confirmation
Standard H-4NP Joints – Box (150 Units)

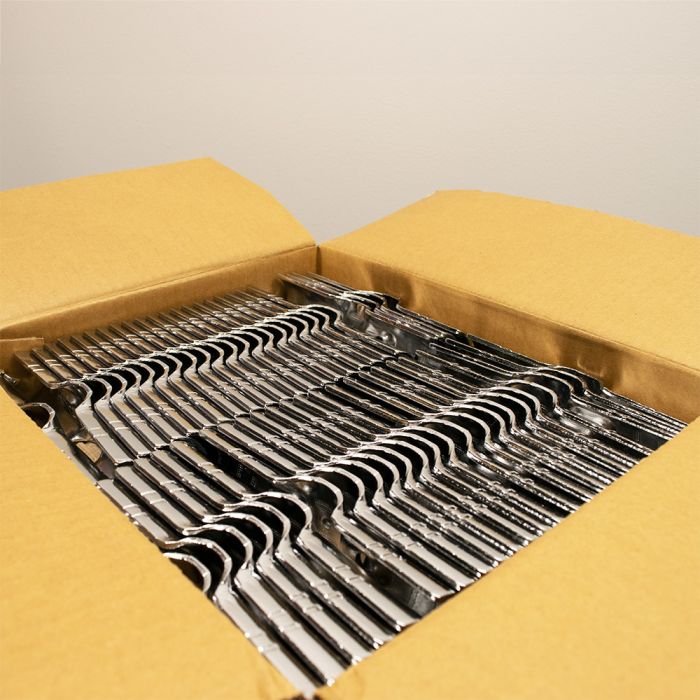

- Full box of 150 H-4NP Units
- 5% discounted from regular pricing
- Only available online
Description

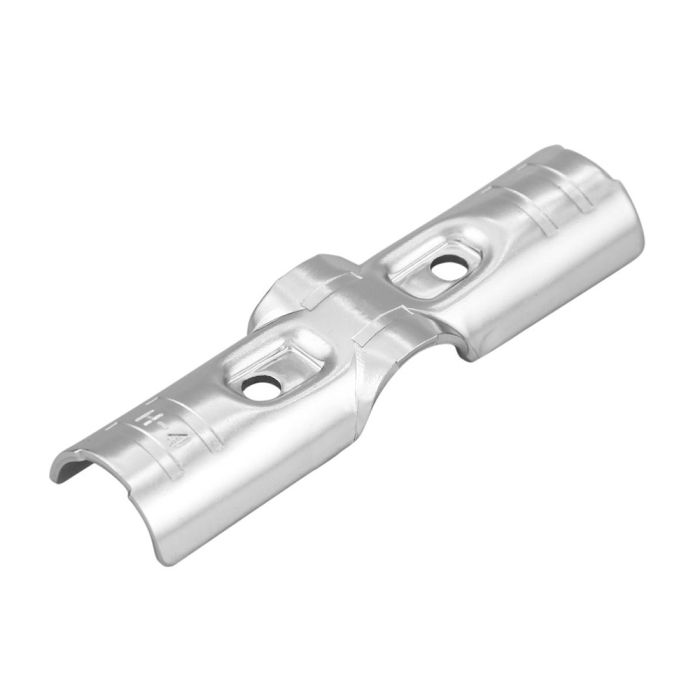

account – H-4NP is one of the 4 main fittings used in most of the Flexpipe builds. If you carry Flexpipe stock and often build lean structures, we suggest to carry a box of this connector.
If you order complete boxes online, benefit from a 5% discount compared to unit pricing.
Ordering boxes make it easier on your end to manage receiving stocks and reordering boxes especially with the T-KANBAN kanban card.
| Box Quantity | 150 |
|---|---|

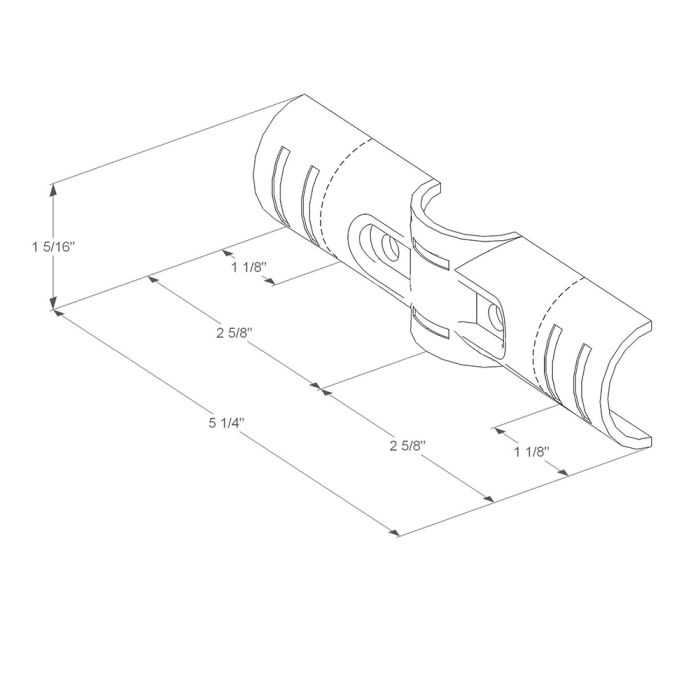

| Length | 5 1/8 in (130 mm) |
| Height | 3/4 in (19 mm) |
| Width | 1 5/16 in (33 mm) |
| Weight | 0.233 lb (0.106 kg) |
| Box Weight | 34.95 lb (15.85 kg) |
| Box Dimensions | Cardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm) |
| Compatible brand | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Non Compatible Brand | Fastube, Trilogiq (28.6 mm) |
| Primary Material | Hot rolled steel (SPHC) with chrome plating |
| Temperature Resistance | -148°F to 572°F (-100°C to 300°C) |
| Electric Conductivity (ESD) | Yes |
| Manufacturing Technique | Stamping and deburring |
