Description

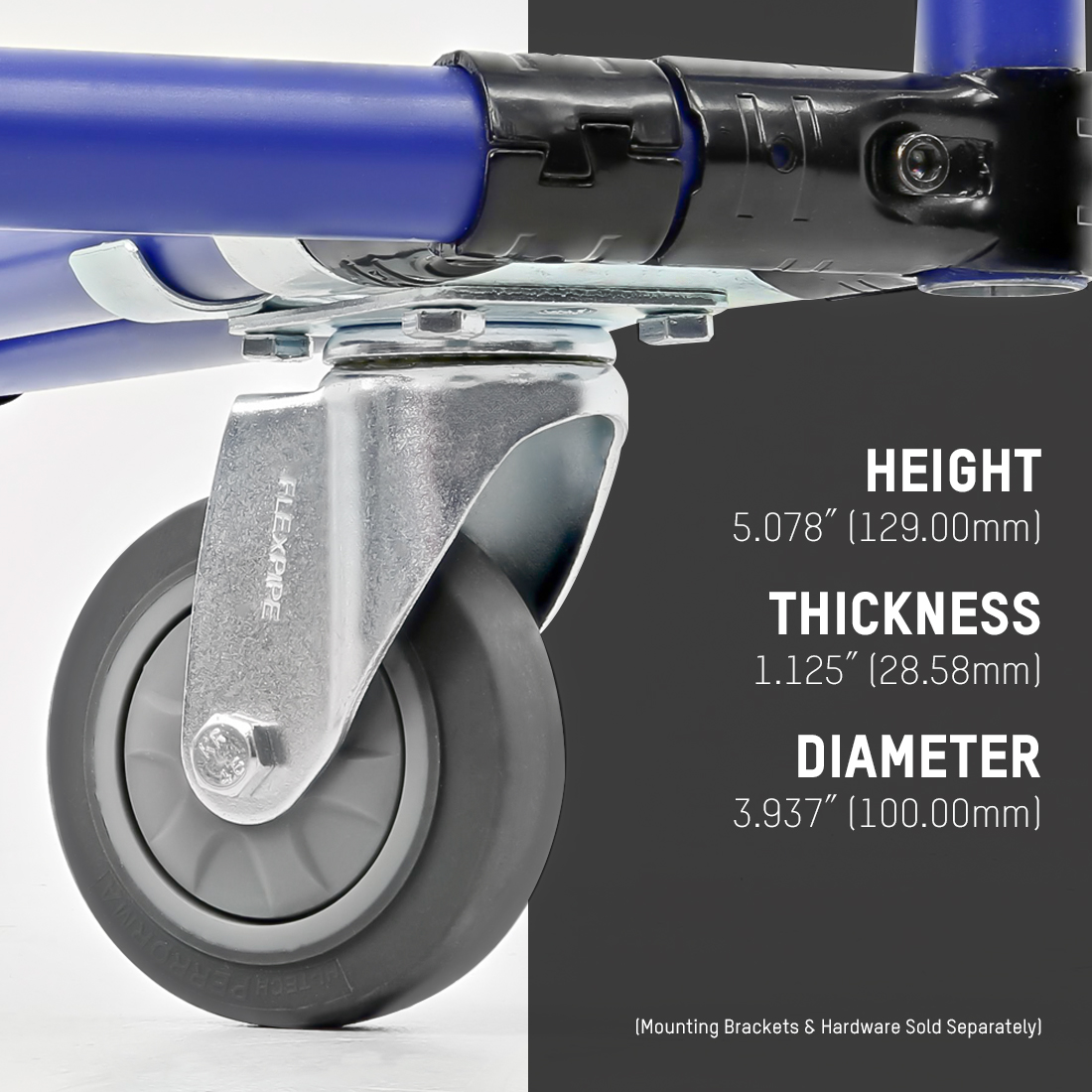

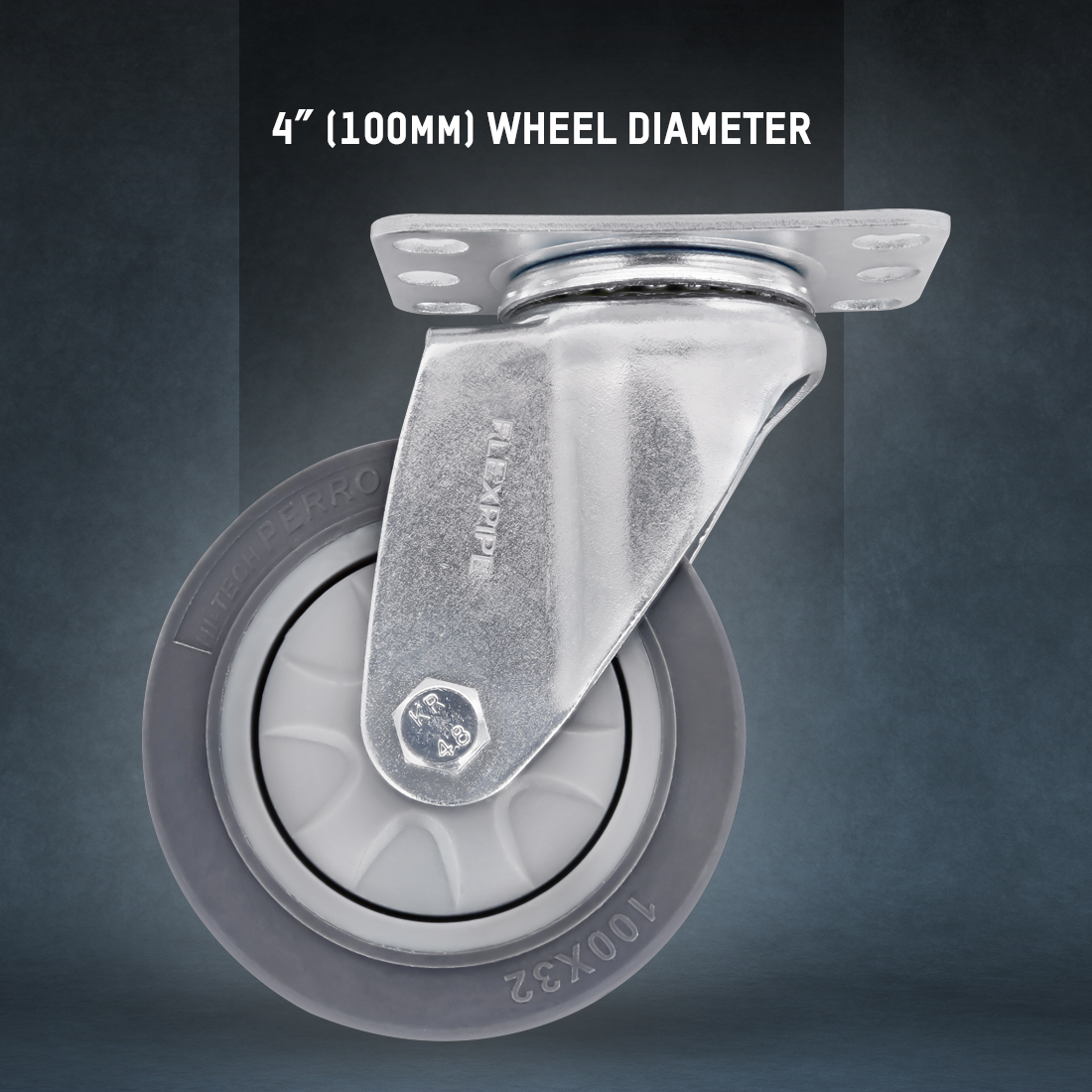

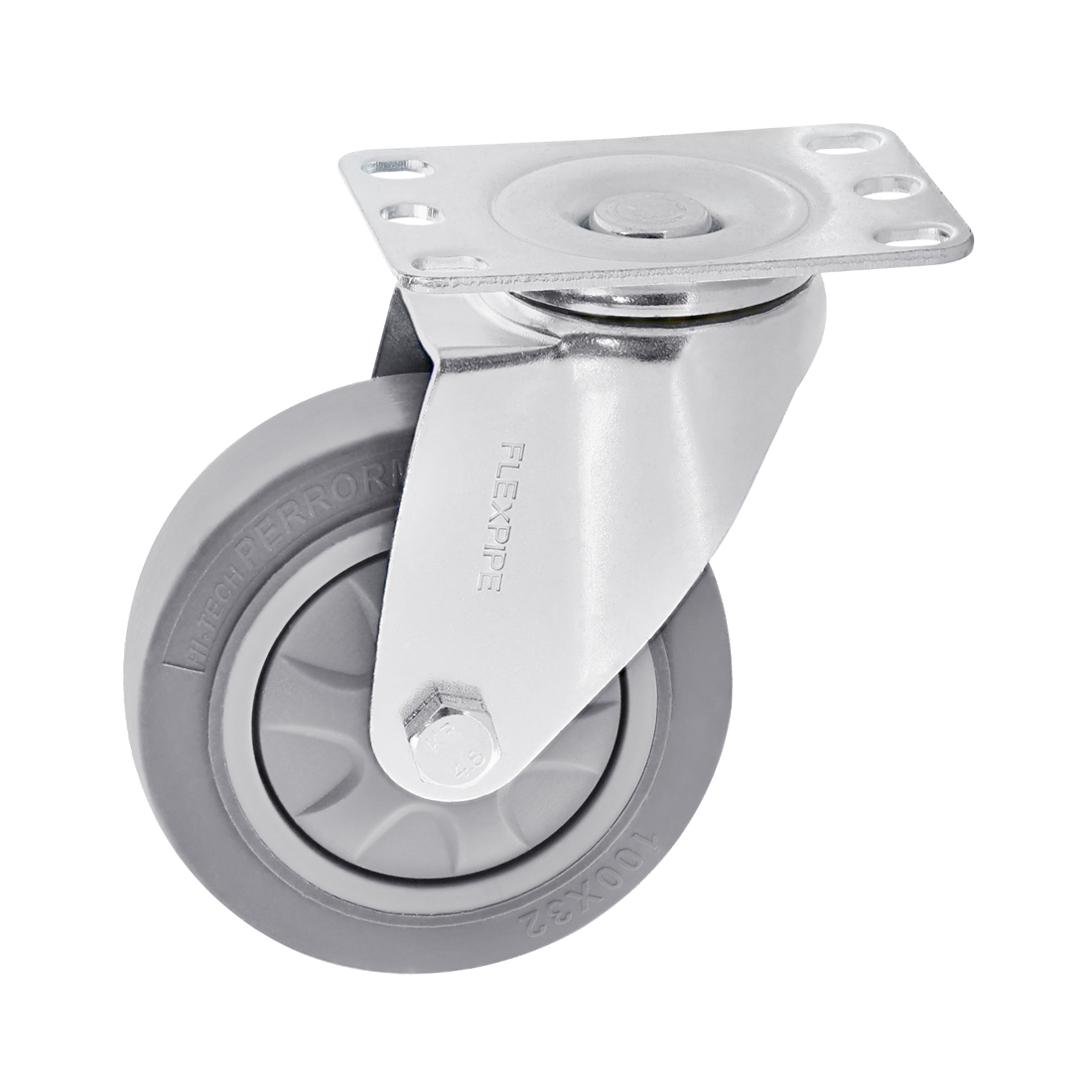

Need a caster that keeps your structure moving smoothly—without slowing you down? The W-4PS is a 4-inch (102 mm) swivel plate caster engineered for speed, agility, and performance. With no brake to get in the way, it’s the smart choice for medium-duty modular carts and mobile stations used frequently throughout the day.

Performance That Keeps Up With You

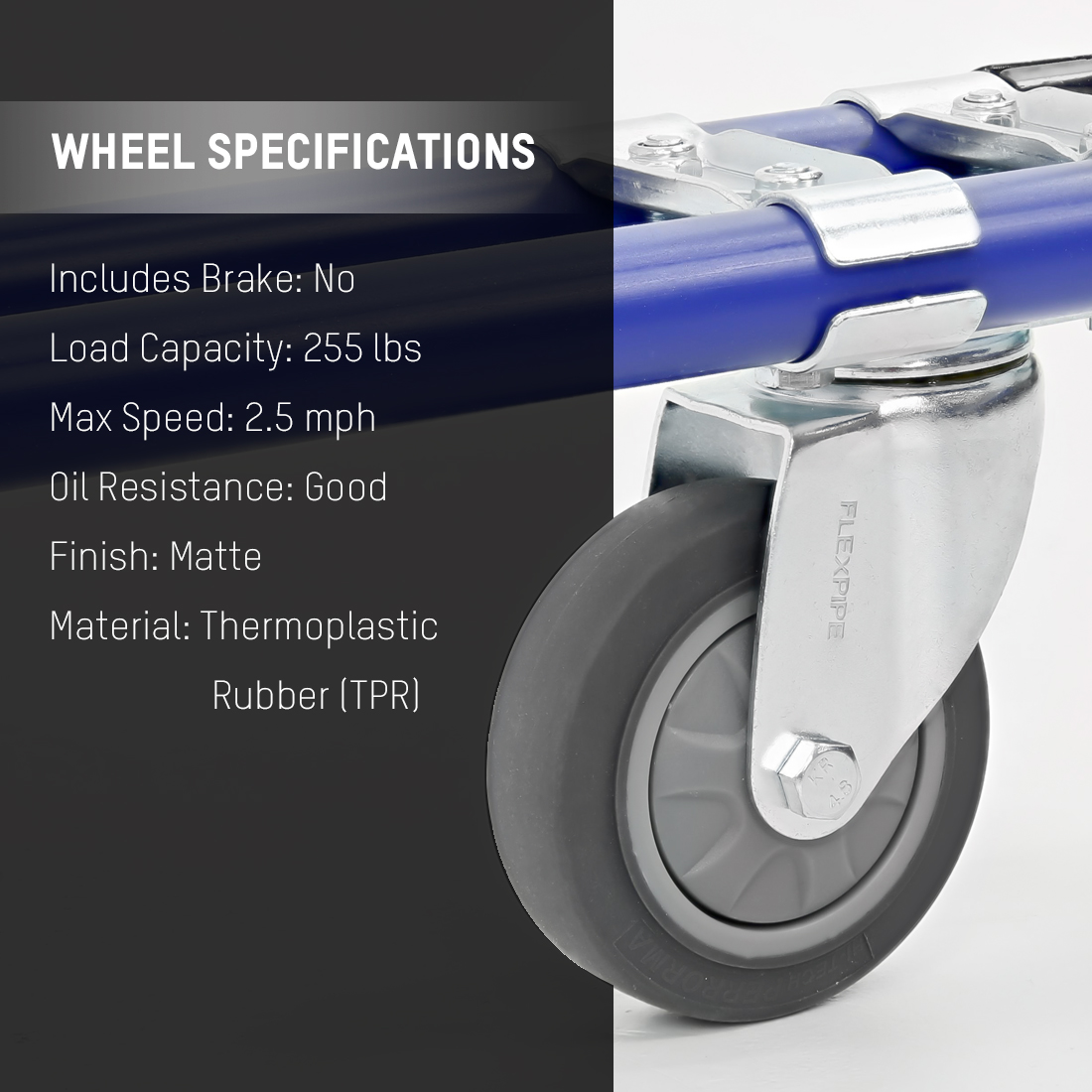

• Precision ball bearing: Delivers consistent, quiet rolling even under load
• 250 lb (113 kg) capacity: Supports medium-to-heavy carts without compromise
• 360° swivel mount: Enables easy turning and steering in tight spaces
• Compact and practical: Great for structures that need frequent repositioning

Recommended Applications

• Carts moving up to 100 ft (30.48 m) per trip
• Workstations in frequent use – up to 150 moves per day
• Larger modular carts (24″ (610 mm) wide × 48″ (1219 mm) long or more)

Compatible With

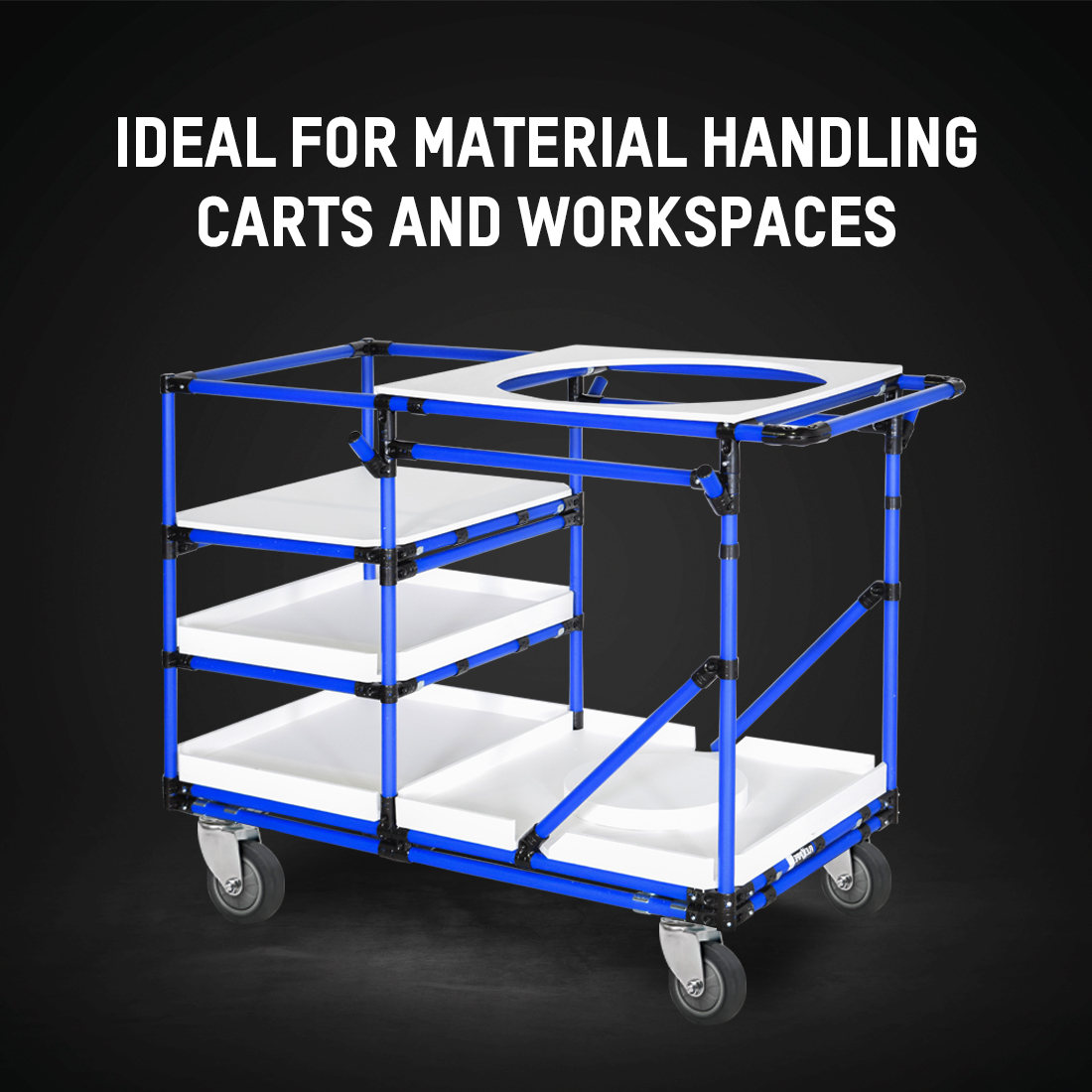

• Material handling carts and lean structures

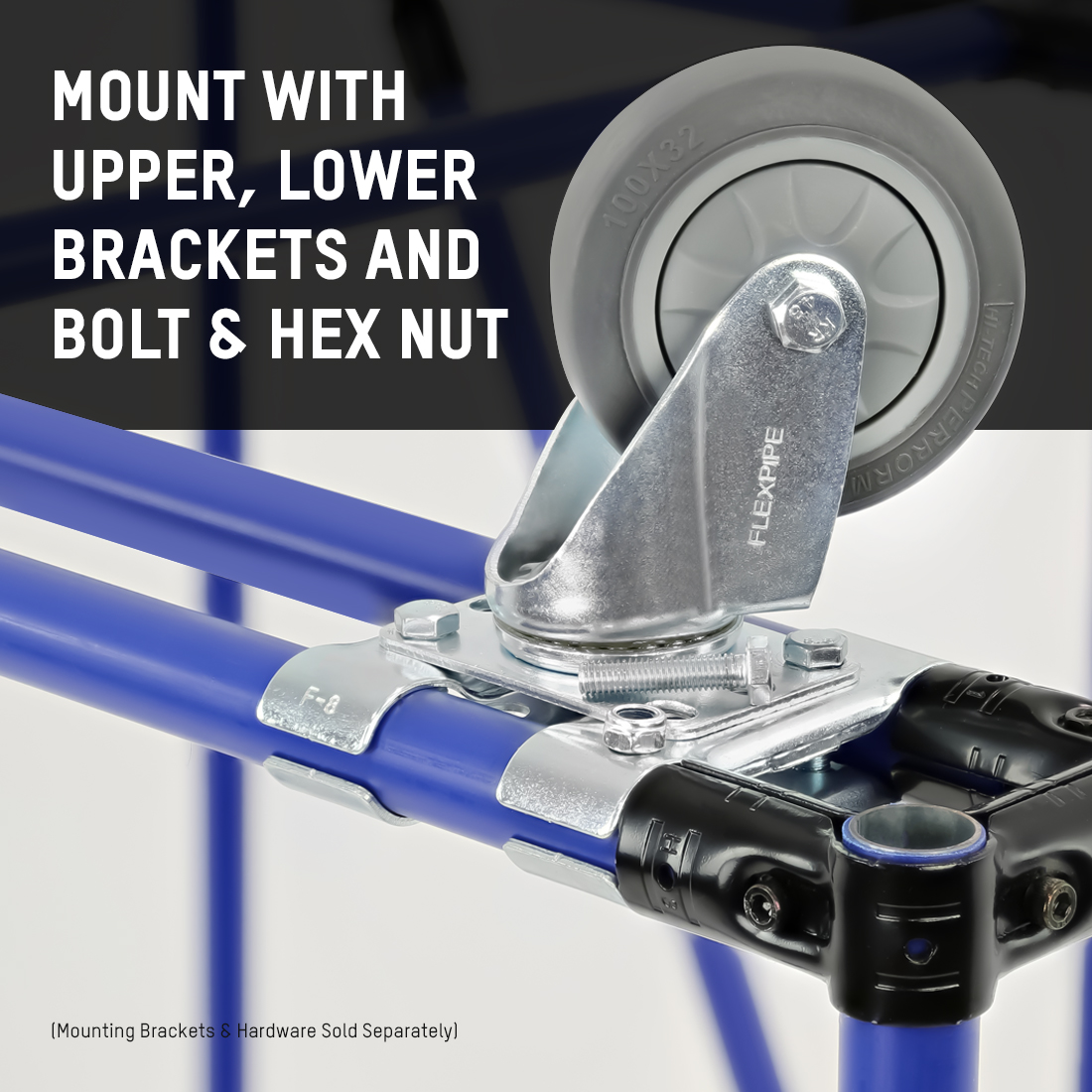

• Mounting hardware:
  • 2 × WF-UP (upper bracket)
  • 2 × WF-LOW (lower bracket)
  • 4 × M8-35B bolts
  • 4 × M8-N nuts

Need Something Tougher?

For ramps, rough floors, or outdoor use, consider upgrading to the W-6PSB caster for better durability and control.

Support for Your Build

Need help with setup or design? Explore our assembly services for guided support and installation recommendations.
