W-4ESBLK
4" Swivel Stem Caster with Brake for Lift
$0.00
Fast Shipping quote upon checkout
In stock
Various payment methods available
Ready for dispatch upon order confirmation
4″ Swivel Stem Caster with Brake for Lift
$0.00
- 4 inches (100 mm) diameter wheel
- 385 lbs (175 Kg) loading capacity
- Useful to retrofit standard lift kit feets
Description
Retrofit your lift kit to easily move your height-adjustable workstation
- Use this caster instead of the feets included with the L-C100012K Crank driven lift kit or the L-M132012K Motor driven lift kit installed on your workstation to make it mobile.
Easy to install
- Simply engage the break and spin the wheel into place until tight then 11/16 flat wrench for 1/4” turn tight. Do not overtight!
- Unlock the caster to move and don’t forget to lock it back when into place.
Product characteristics
- 4 inches swivel stem caster with brake and a loading capacity of 385 pounds (175 kg) and a maximum speed of 1.9mph.
- For exclusive usage with the L-C100012K Crank driven lift kit or the L-M132012K Motor driven lift kit.
- No electric conductivity (ESD).
- Not recommended for long trips and outside usage.
- Equipped with a precision ball bearing.
| Box Quantity | 4 |
|---|---|

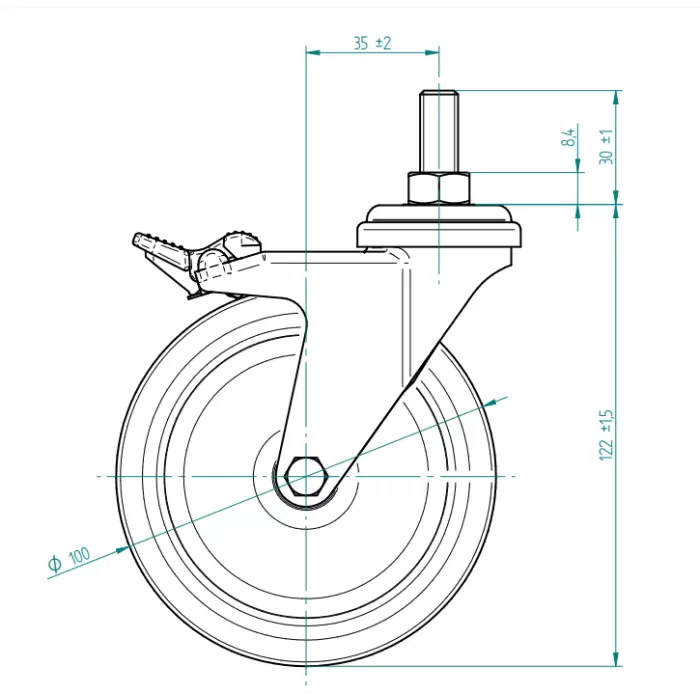

| Height | 4 3/4 po (121 mm) |
| Weight (kg/lbs) | 0.7 lb (0.313 kg) |
| Primary Material | Thermoplastic Rubber (TPR) |
| Temperature Resistance | -4°F to 140°F (-20°C to 60°C) |
| Electric Conductivity (ESD) | No |
| Loading Capacity | 385 lb (175 kg) static 154 lb (70 kg) at 1.9 mph (0.52 m/s) |
