HJ-17NP
45 Fix Angle Joint Set Steel - ESD
$0.00
Fast Shipping quote upon checkout
In stock
Various payment methods available
Ready for dispatch upon order confirmation
45 Fix Angle Joint Set Steel – ESD
$0.00
- Compatible with 28 mm pipes
- Assembly required; pieces sold separately
- Nuts and bolts are included, but packaged separately – Joint set with antistatic properties (ESD)
Description
The HJ-17NP is a chrome-plated joint set with antistatic properties (ESD) that allows to create a two-pipe intersection with a 45-degree non-adjustable angle. This joint set is used for reinforcing structures. Unlike the account – HJ-6NP / account – HJ-6ANP / account – HJ-14NP, the HJ-17NP has nos adjustable angle. This feature makes it particularly useful for individual reinforcement situations.
To assemble an HJ-17NP you need to combine an account – H-17NP and an account – H-18NP together with one account – M6-25BWZ bolt and one account – M6-NWZ nut.
Assembly tip:
This joint set is composed of only a few parts, which makes its installation very fast. In addition, this feature helps strengthen the structure, and even helps it to increase the load capacity. For more information on the different ways to increase your structure’s loading capacity, read our article How to calculate the loading capacity for modular structures.
Technical Informations:
This joint set is designed with 8 striations for a better grip on the plastic coating of the 28 mm pipes. It also includes 4 additional pre-drilled reinforcement holes to ensure extra strength to your structure. By adding a self-drilling screw account – F-A858, you will solidify the connector joints positioned on a corner where there is a higher risk of impact.
Installation Steps
See the installation steps tab to view how to assemble this connector.
Non-Electric Conductivity Version:
A version of this joint set is offered without antistatic properties: account – HJ-17
Want to reuse parts of your old system?
The HJ-17NP Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
Please note that nuts and bolts are included, but packaged separately. Assembly is required.

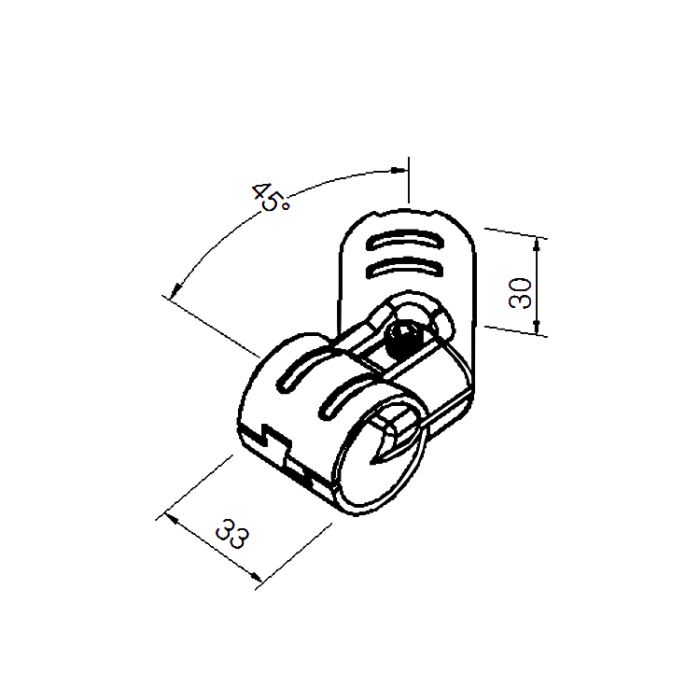

| Length | 3 3/16 in (81 mm) |
|---|---|
| Height | 2 1/8 in (54 mm) |
| Width | 1 5/16 in (33 mm) |
| Material Thickness | 1/8 in (2.5 mm) |
| Weight (kg/lbs) | 0.323 lb (0.147 kg) |
| Compatible brand | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Non Compatible Brand | Fastube, Trilogiq (28.6 mm) |
| Primary Material | Hot rolled steel (SPHC) with chrome plating |
| Temperature Resistance | -148°F to 572°F (-100°C to 300°C) |
| Electric Conductivity (ESD) | Yes (10– 10^3) |
| Manufacturing Technique | Stamping and deburring |

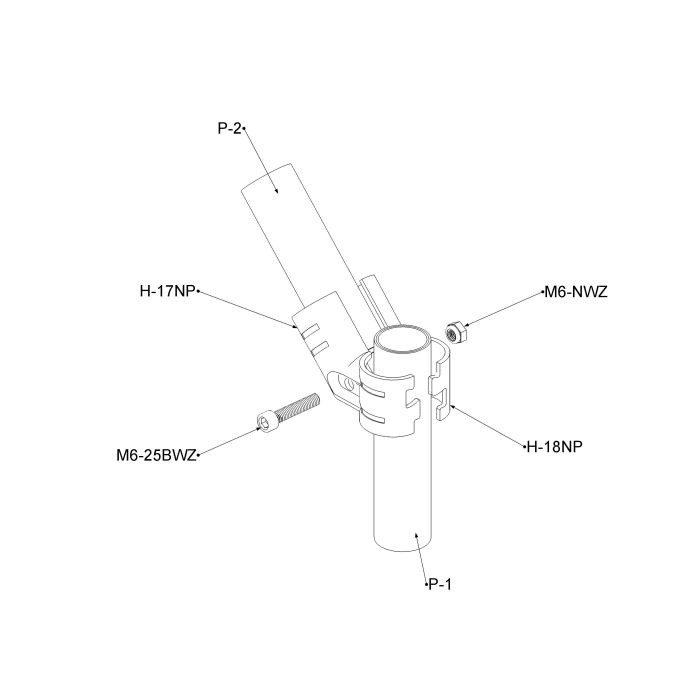

- Ensure you have the following parts:
- 1x account - H-17NP
- 1x account - H-18NP
- 1x account - M6-25BWZ
- 1x account - M6-NWZ
- 2x 28mm ESD pipes of your choice
- 1x T-HANDLE 5mm hex key
- Group the H-17NP with the H-18NP connector around the first pipe.
- Fix the connectors together by placing the M6-25BWZ bolt with the M6-NWZ nut in the corresponding openings, and loosely tighten.
- Insert the second pipe in the remaining opening of the connectors, between the first and the second positioning guidelines.
- Tighten completely until the HJ-17NP joint set is firmly attached to the two pipes.
