SEP-96-BK
Black 8 ft PE Coated Steel Pipe 2 mm Thick ESD
$0.00
Fast Shipping quote upon checkout
Out of stock
Various payment methods available
Ready for dispatch upon order confirmation
Black 8 ft PE Coated Steel Pipe 2 mm Thick ESD
- Optimizes space with modular adaptability
- PE coating withstands industrial wear and chemicals
- Seamless fit with 28 mm lean pipe systems
- Available pre-cut for reduced assembly time
Description
The SEP-96-BK is an 8 ft (2438 mm) PE-coated steel pipe designed for lean manufacturing. Its 28 mm diameter ensures compatibility with Flexpipe’s modular systems. The black coating is commonly used for base frames and support structures, and its durability makes it suitable for both static and mobile structures.
Key Features & Benefits
- Color-Driven Efficiency: Commonly used for base frames and support structures
- Lean Integration: Fits any 28 mm joint and connector setup
- Industrial Durability: PE surface resists corrosion, impact, and solvents
- Precise Sizing: Cut-to-length option available
Recommended Accessories
See all compatible options in our joints and connectors category.
Application Areas
Use this pipe in a wide range of lean production setups, including:
- Heavy-duty base frames
- Wheeled workstation cores
- Under-structure support beams

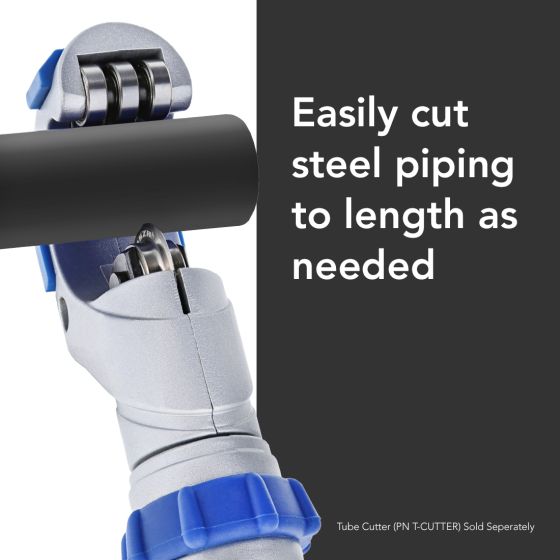

Customization & Cutting Service
Streamline your build with our cutting service for ready-to-assemble pipe lengths.
Additional information
| Diameter | |
|---|---|
| Length | |
| Color | |
| Material thickness | |
| Pipe Protector | |
| ESD |
| Color | Black |
|---|---|
| Box Quantity | 8 |
| Length | 96 in (2438.4 mm) |

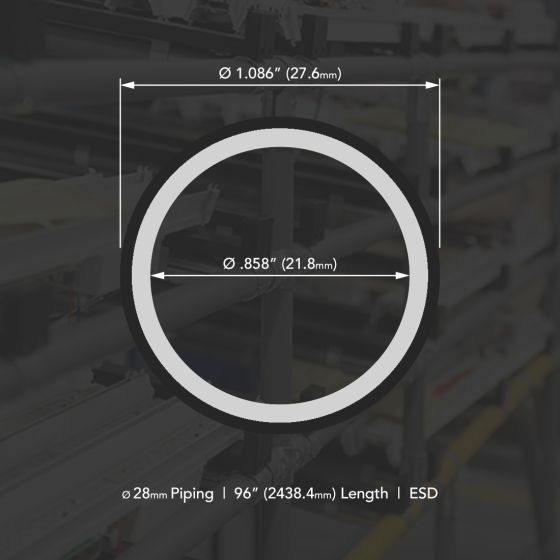

| Outside Diameter | 1 1/16 in (27.6 mm ± 0.2 mm) |
| Inside Diameter | 7/8 in (21.8 mm ± 0.1 mm) |
| Material Thickness | 1/16 in (1.8 mm ± 0.02 mm) |
| Weight | 6.490 lb (2.950 kg) |
| Box Dimensions | Plastic packaging 96 1/4 X 4 1/2 X 2 1/2 in (2444.75 mm X 114.3 mm X 57.15 mm) |

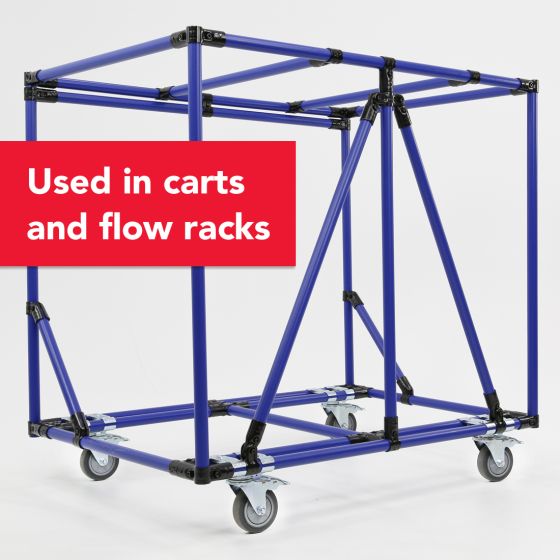

| Common Usage | Carts, racks, flow racks, workstations, boards |
| Compatible brand | Creform, Fastube |

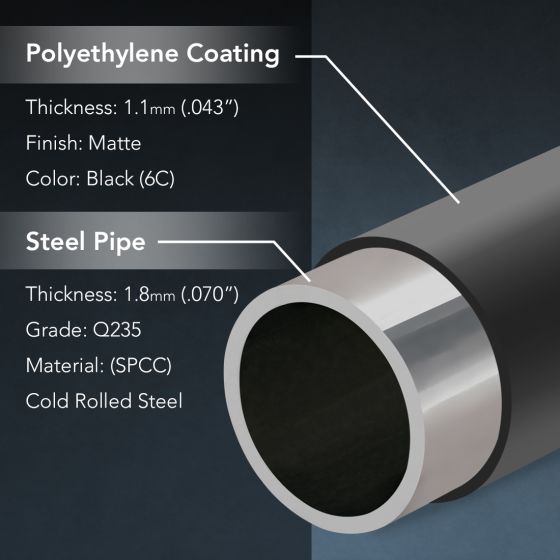

| Primary Material | Galvanised cold rolled steel (SPCC) |
| Secondary Material | High density polyethylene (HDPE) |
| Temperature Resistance | -40°F to 122°F (-40°C to 50°C) |
| Electric Conductivity (ESD) | Yes (10^6– 10^8) |
| Manufacturing Technique | High frequency welding |
| Pantone | 6C |
