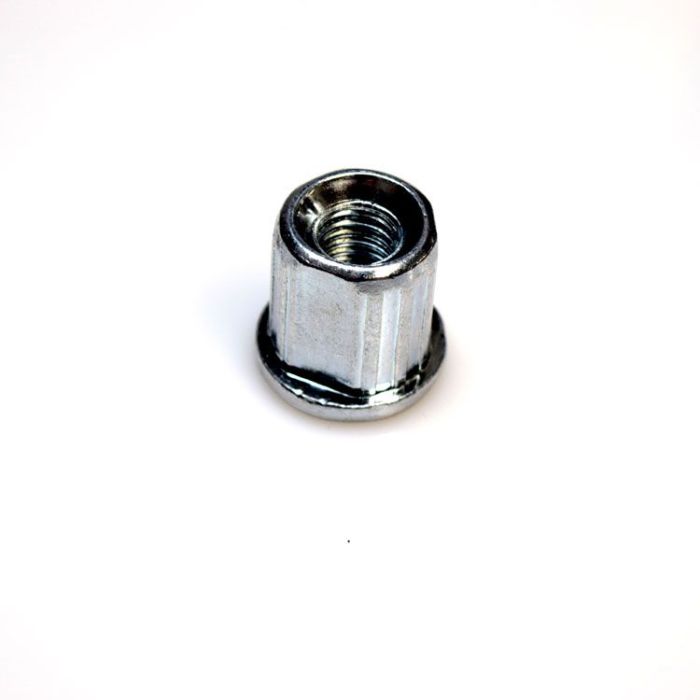

F-BUS-REG
Bushing for 1 mm Thick Stainless Steel Pipe
$0.00
Fast Shipping quote upon checkout
In stock
Various payment methods available
Ready for dispatch upon order confirmation
Bushing for 1 mm Thick Stainless Steel Pipe
$0.00
- The F-BUS-REG is made for our regular PE Coated Pipe (e.g. P-96)
- A must if you re-use AF-ILEV
- M12 bolt size
- 200 units per box (please order individually)
Description
- We recommend using it if you reuse AF-ILEV or if you want to screw your stem wheels instead to press fit them.
- The F-BUS-REG is compatible with regular pipes, those starting with P-96.
- Fits M12 bolt size
If you want an ESD application use the EP-96-BK or the stainless steel pipe EP-96-ST , but this will require the appropriate bushing F-BUS to use it.
See the installation steps tab to view how to install the F-BUS-REG.
Additional information
| Usage | |
|---|---|
| ESD |
| Box Quantity | 200 |
|---|---|
| Weight | 0.185 lb (0.084 kg) |
| Box Dimensions | Cardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm) |
| Common Usage | Spare parts |
| Compatible brand | Flexpipe, Creform, Fastube |
| Non Compatible Brand | Trilogiq |
| Primary Material | Hot rolled steel (SPHC) |
| Temperature Resistance | -58°F to 185°F (-50°C to 85°C) |
| Frequency of Use | Low |
| Electric Conductivity (ESD) | Yes |
Place the F-BUS-REG on the pipe end and, with a hammer, hit it till it is fully into the pipe.
