HJ-15NP
Flat Clamp Joint Set Steel - ESD
$0.00
Fast Shipping quote upon checkout
In stock
Various payment methods available
Ready for dispatch upon order confirmation
Flat Clamp Joint Set Steel – ESD
$0.00
- Compatible with 28 mm pipes
- Assembly required
- Nuts and bolts are included, but packaged separately – Joint set with antistatic properties (ESD)
Description

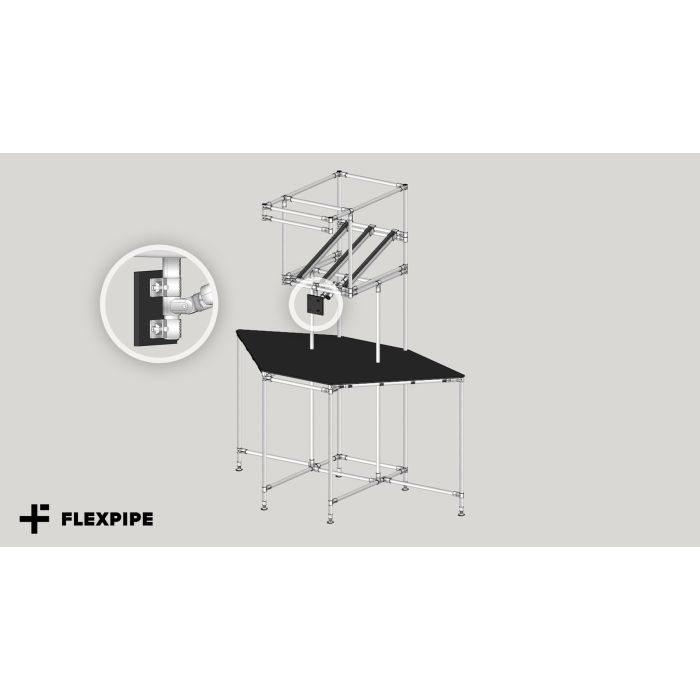

The HJ-15NP is a chrome-plated joint set with antistatic properties (ESD) that connects a tube to a surface. If you want to create both an anchor and support, this joint set is your best option.
To assemble an HJ-15NP you need to put an account – H-15NP together with an account – H-16NP, an M6-12BWZ bolt, and an account – M6-NWZ nut.
Assembly tip:
You can also create the same type of support with the following accessories: AO-SHIM and AO-EMT1. The first serve for leveling, while the second serves for fixing the pipe to the surface. Although this option is an alternative, we recommend that you considerate the HJ-15NP as a first choice.
Technical Information:
This joint set is designed with 4 striations for a better grip on the plastic coating of the 28 mm pipes. It also includes an additional pre-drilled reinforcement hole to ensure extra strength to your structure. By adding a self-drilling screw account – F-A858, you will solidify the connector joints positioned on a corner where there is a higher risk of impact.
Installation Steps:
See the installation steps tab to view how to assemble this connector.
Non-Electric Conductivity Version:
A version of this joint set is offered without antistatic properties: account – HJ-15
Want to reuse parts of your old system?
The HJ-15NP Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
Please note that nuts and bolts are included, but packaged separately. Assembly is required.
| Length | 1 13/16 in (46 mm) |
|---|---|
| Height | 1 5/16 in (33 mm) |
| Width | 2 5/8 in (67 mm) |
| Material Thickness | 1/8 in (2.5 mm) |
| Weight (kg/lbs) | 0.200 lb (0.091 kg) |
| Compatible brand | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Non Compatible Brand | Fastube, Trilogiq (28.6 mm) |
| Primary Material | Hot rolled steel (SPHC) with chrome plating |
| Temperature Resistance | -148°F to 572°F (-100°C to 300°C) |
| Electric Conductivity (ESD) | Yes (10– 10^3) |
| Manufacturing Technique | Stamping and deburring |
- Ensure you have the following parts:
- 1x account - H-15NP
- 1x account - H-16NP
- 1x account - M6-12BWZ
- 1x account - M6-NWZ
- 1x 28mm ESD pipe of your choice
- 1x T-HANDLE 5mm hex key

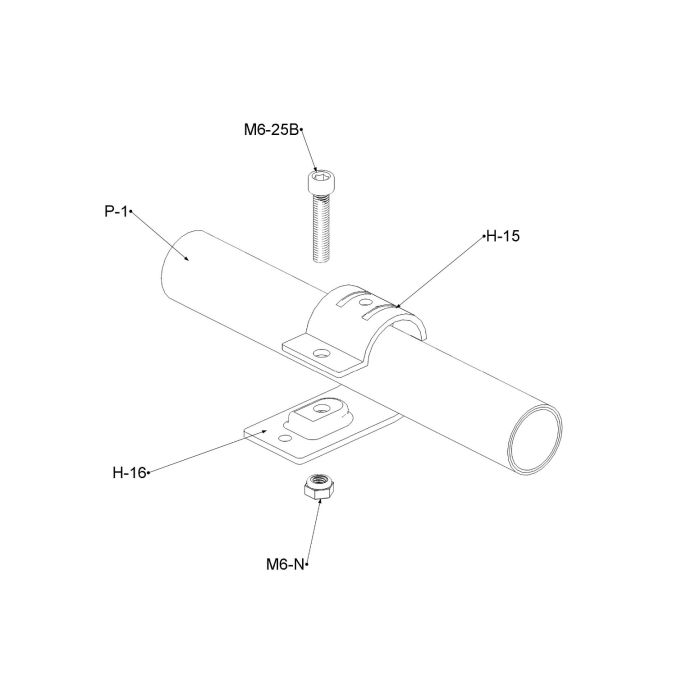

- Group the H-15NP with the H-16NP connector around the first pipe. Ensure the connectors fit properly to the pipe.
- Fix the connectors together by placing the M6-12BWZ with the M6-NWZ in the corresponding openings.
- Tighten completely until the HJ-15NP joint set is firmly attached to the pipe.
- Fix the HJ-15NP joint set on the surface of your choice with an F-SF81 or any appropriate screw for the desired surface.
