Description

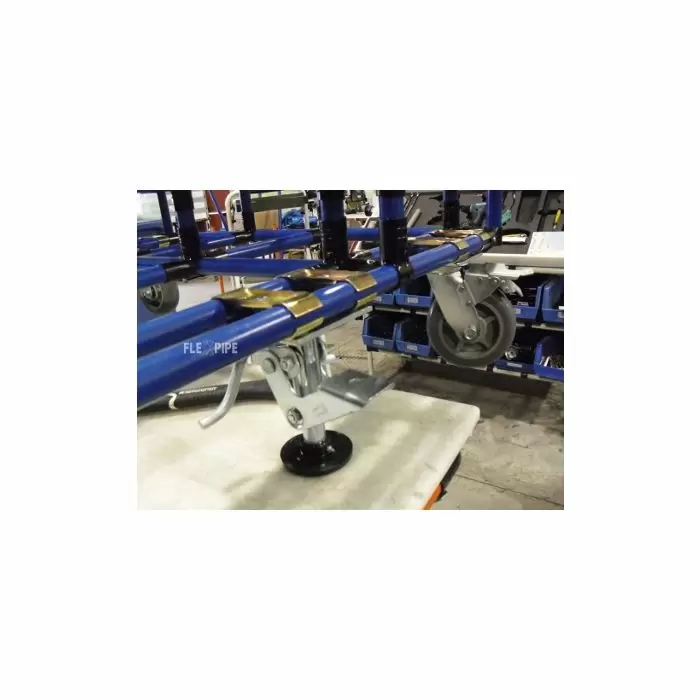

Use this part to secure your modular structure when it’s needed or during transportation. Installs on 4 inches casters with 2x upper brackets WF-UP 2x lower brackets WF-LOW, 4x 35mm bolts M8-35B and 4x nuts M8-N. The BC4 can’t be used on heavy carts. This product is very useful when the structure will be moved in a truck.

BC4 allows three extended height measurements: 4 15/16 inches, 5 17/32 inches, 6 7/32 inches and a retracted height of 5 11/64 inches.

Plate size: 2 1/2” x 3 5/8”

Bolt hole spacing: 1 3/4” x 2 7/8 – 3”

BC4 floor lock brake is designed for use on level surfaces and is not recommended for use on inclined surfaces.

• Heavy-duty industrial strength structure
• Foot pedal easily activates lock with foot pressure
• Non-slip, non-skid rubber brake pad holds securely on a smooth or irregular floor. Designed for use on level surfaces
• Durable, high-compression spring for heavy loads
• Conveniently-located released bar retracts brake instantly with slight toe pressure to either side of the bar
