Description

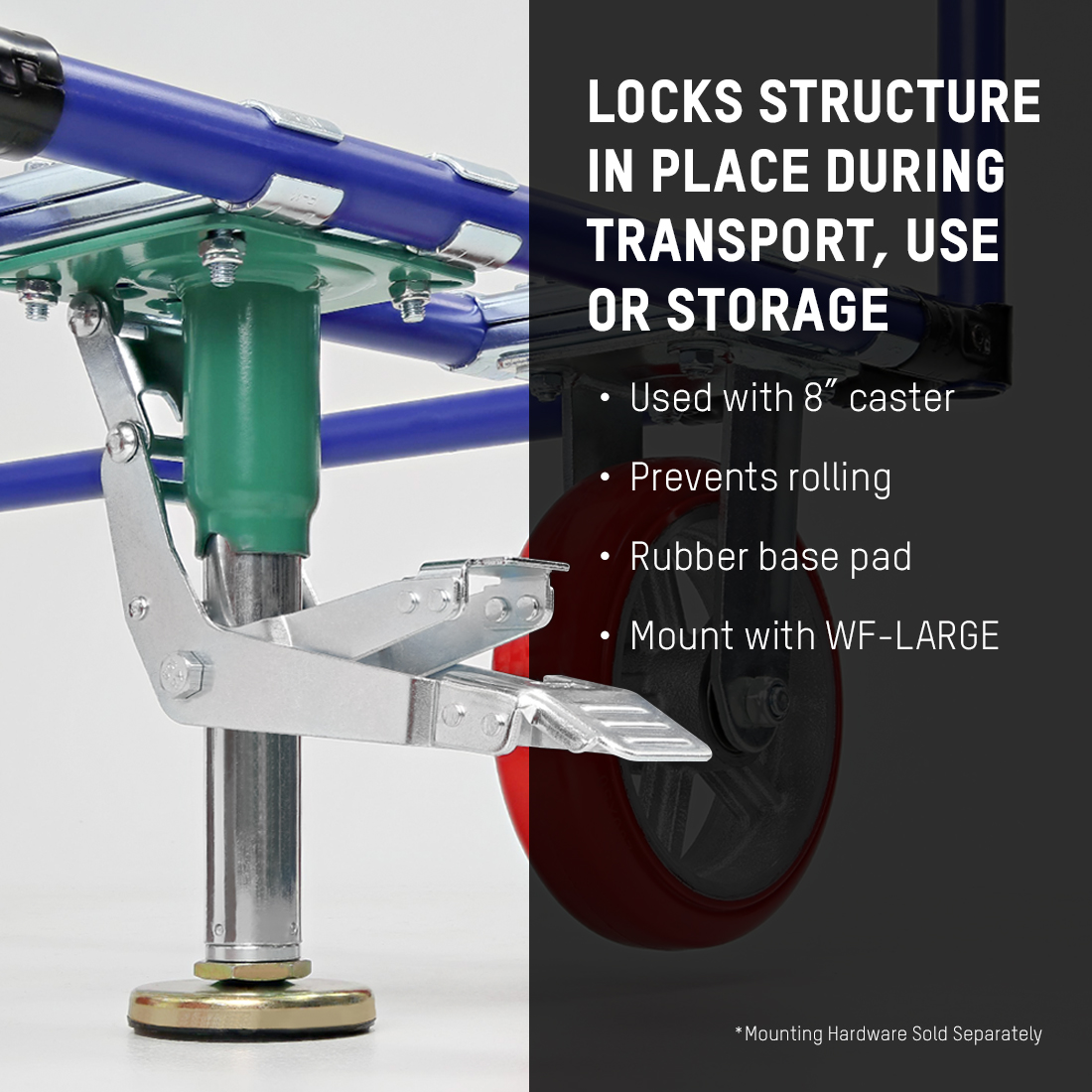

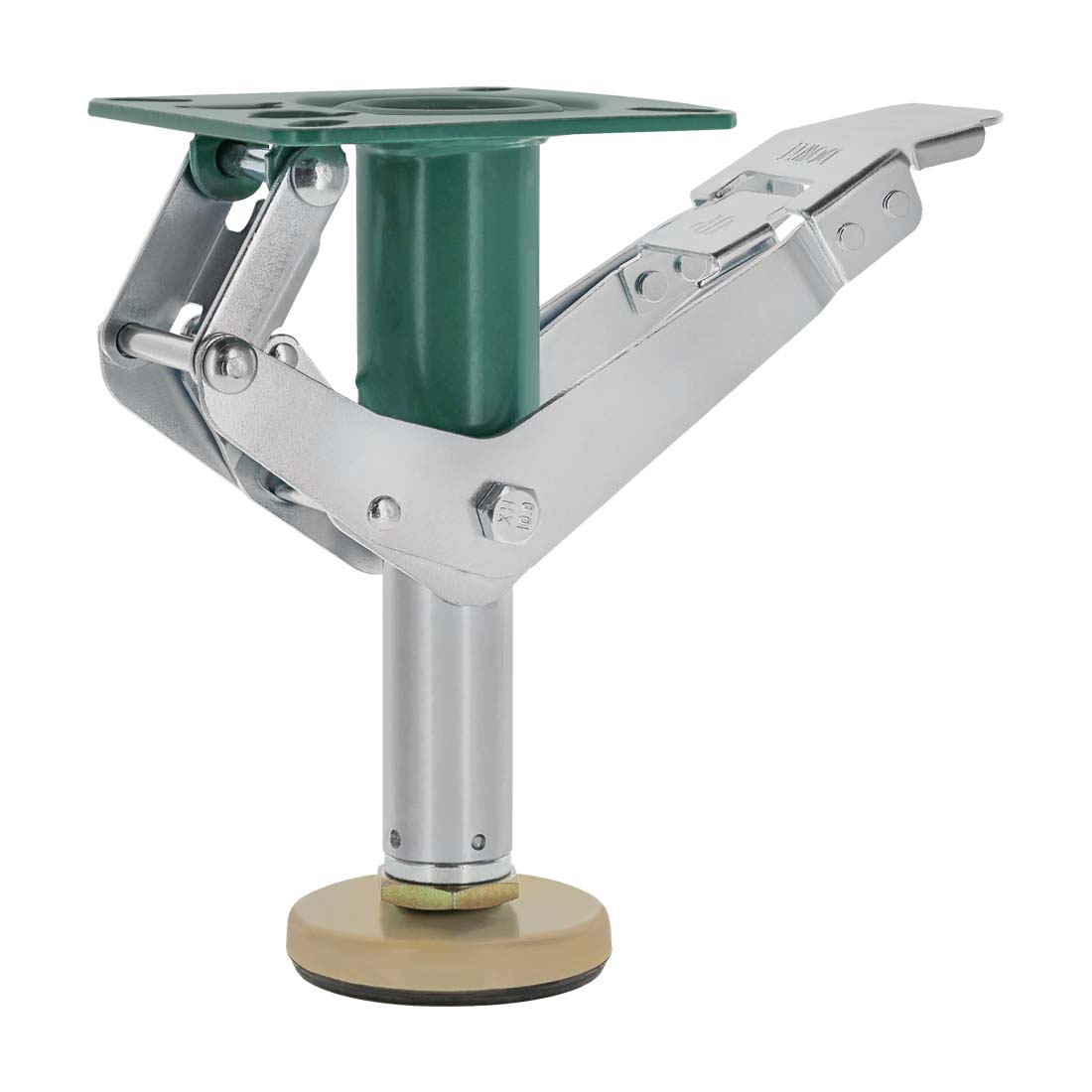

The BC8 is a durable floor lock designed to stabilise large carts and mobile Flexpipe structures equipped with 8″” casters. Built for industrial use, it offers secure ground contact to prevent rolling during loading, unloading, or stationary use—especially in trucks and production areas.

Key Features

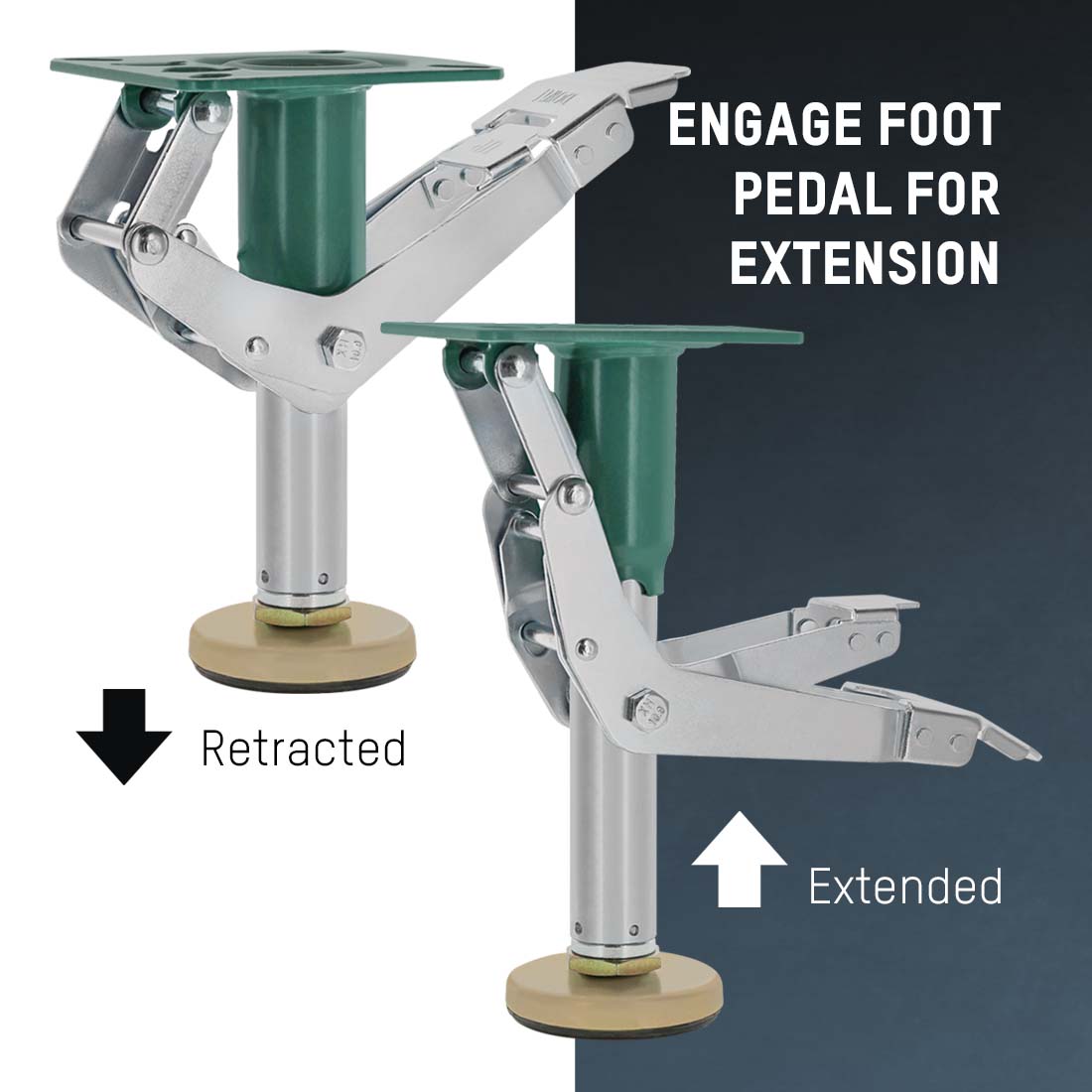

• Foot pedal activation: Engages easily with downward pressure

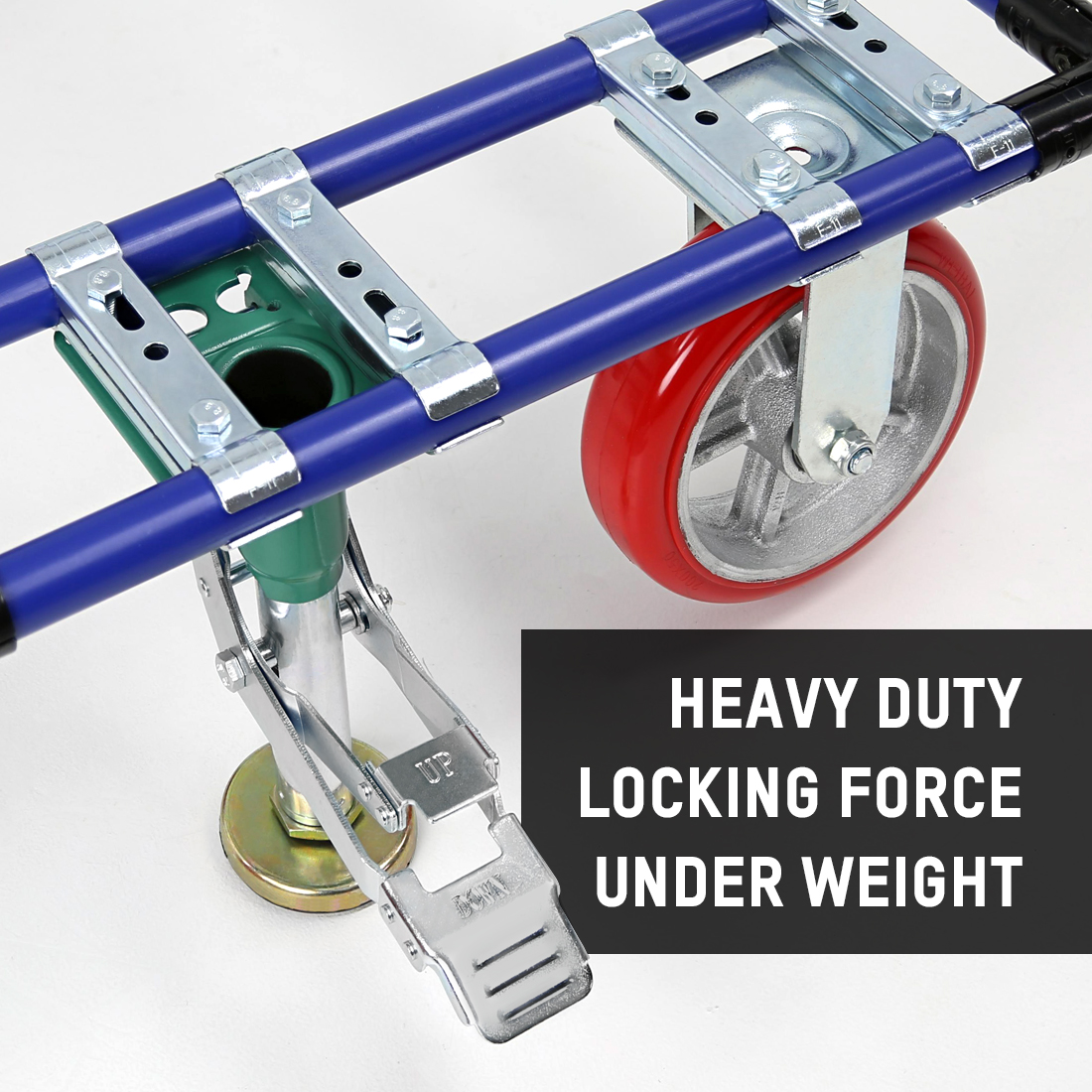

• Heavy-duty spring system: Maintains locking force under weight
• Rubber base pad: Improves grip on both smooth and uneven floors
• Mounting plate dimensions: 4 1/2″” × 4″”

Common Applications

• Modular carts used in material handling structures
• Locking structures inside transport trucks
• Temporary immobilization during production or storage

Industries

• Warehousing and logistics
• Battery assembly and storage operations
• Automotive manufacturing and distribution

Installation Requirements

• 4 × WF-LARGE
• 4 × M8-45B bolts
• 4 × M8-N nuts
• 8 × F-W516 washers

Complementary Products

• W-8PSB – Swivel caster with brake
• W-8PF – Fixed caster

⚠️ Usage Advisory

Only for use on flat, level surfaces. Not suitable for ramps or inclined floors.

Need Assistance?

See our assembly support services for installation guidance or structure design help.
