AW-MOUNT
Monitor VESA Mounting Plate
$0.00
Fast Shipping quote upon checkout
In stock
Various payment methods available
Ready for dispatch upon order confirmation
Monitor VESA Mounting Plate
$0.00
- Compatible with 28 mm pipes
- Assembly required
- Can be used to fix monitors to workstation
Description

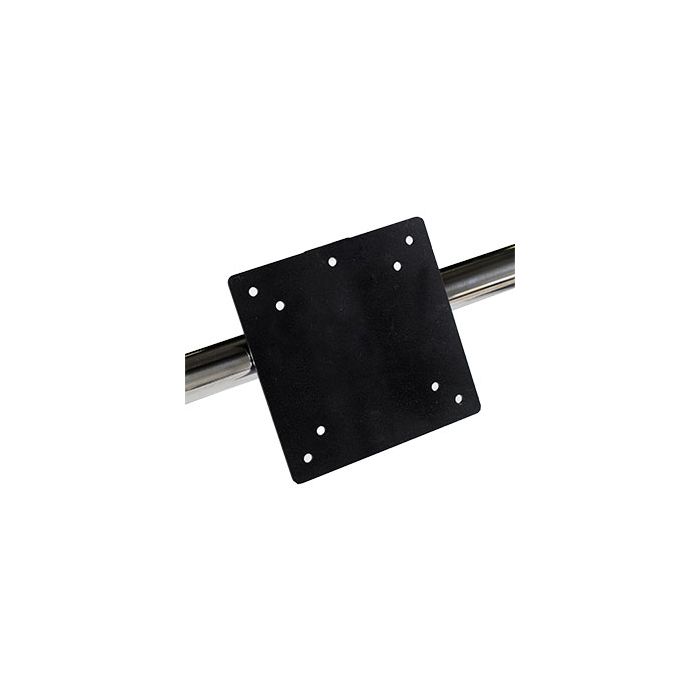

The AW-MOUNT is an accessory that can be used to attach a monitor or television to a pipe and improve the efficiency of your workstations.
It consists of a Uppler clamp joint (H-15), a Bolt for HJ-15 set (M6-12B), a Monitor plate and four Monitor set screws.
The AW-MOUNT will mount most standard size monitors or televisions.
| Box Quantity | 1 |
|---|---|
| Length | 4 7/8 in (123.8 mm) |
| Height | 4 7/8 in (123.8 mm) |
| Width | 1/16 in (1.6 mm) |
| Weight | 0.892 lb (0.405 kg) |
| Common Usage | Computer monitors and TV for workstation |
| Compatible brand | Creform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm) |
| Non Compatible Brand | Trilogiq (28.6 mm) |
| Primary Material | Hot rolled steel (SPHC) with black cathodic electrodeposition (Ecoating) |
| Electric Conductivity (ESD) | No |
1. Screw the plate to the screen
2. Position the plate where you want it on the pipe
3. Position the H-15 and tighten it in the desired position
