Parallel Joint Set Steel – ESD
$0.00
- Compatible with 28 mm pipes
- Assembly required
- Nuts and bolts are included, but packaged separately – Joint set with antistatic properties (ESD)
Description
The HJ-13NP is a chrome-plated joint set with antistatic properties (ESD) generally used to reinforce the structure’s capacity.
To assemble an HJ-13NP you need to put two account – H-13NP together with an account – M6-25BWZ bolt and an account – M6-NWZ nut.
Assembly tip:

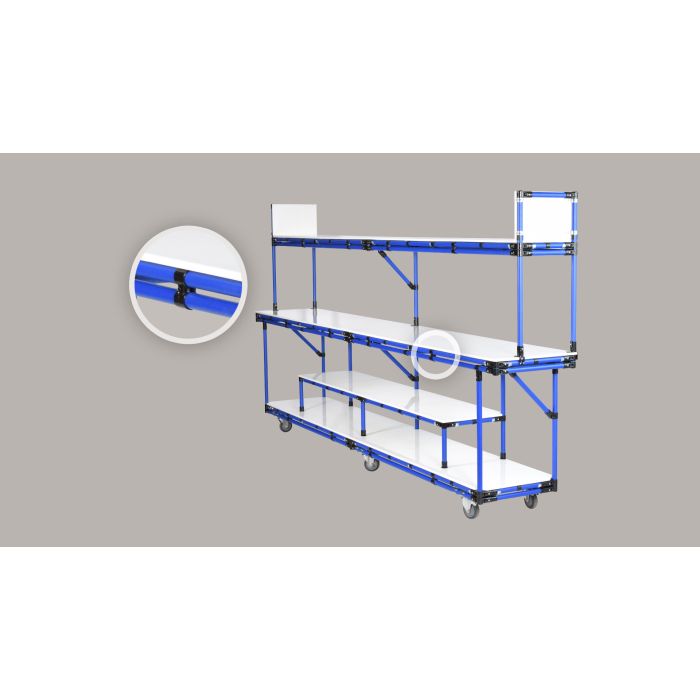

This joint set is frequently used for the assembly of workstation, rack or cart requiring a high load capacity. For more information on the different ways to increase your structure’s loading capacity, read our article How to calculate the loading capacity for modular structures.
Installation Steps:
See the installation steps tab to view how to assemble this connector.
Non-Electric Conductivity Version:
A version of this joint set is offered without antistatic properties: account – HJ-13
Want to reuse parts of your old system?
The HJ-13NP Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
Please note that nuts and bolts are included, but packaged separately. Assembly is required.

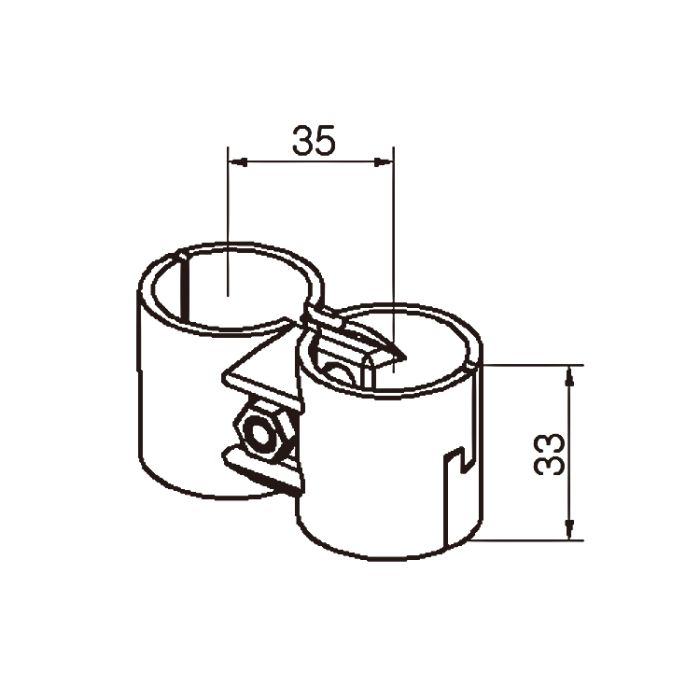

| Length | 2 11/16 in (68 mm) |
|---|---|
| Height | 1 5/16 in (33 mm) |
| Width | 1 5/16 in (33 mm) |
| Material Thickness | 1/8 in (2.5 mm) |
| Weight | 0.253 lb (0.115 kg) |
| Compatible brand | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Non Compatible Brand | Fastube, Trilogiq (28.6 mm) |
| Primary Material | Hot rolled steel (SPHC) with chrome plating |
| Temperature Resistance | -148°F to 572°F (-100°C to 300°C) |
| Electric Conductivity (ESD) | Yes (10– 10^3) |
| Manufacturing Technique | Stamping and deburring |
- Ensure you have the following parts:
- 2x account - H-13NP
- 1x account - M6-25BWZ
- 1x account - M6-NWZ
- 2x 28mm ESD pipes of your choice
- 1x T-HANDLE 5mm hex key
- Group the two H-13NP connectors around the first and the second pipe.
- Fix the connectors together by placing the M6-25BWZ with the M6-NWZ in the corresponding openings and completely tighten until the HJ-13 joint set is firmly attached to the pipes.
