H-5NP
Pivot Point Joint - ESD
$0.00
Fast Shipping quote upon checkout
In stock
Various payment methods available
Ready for dispatch upon order confirmation
Pivot Point Joint – ESD
$0.00
Description

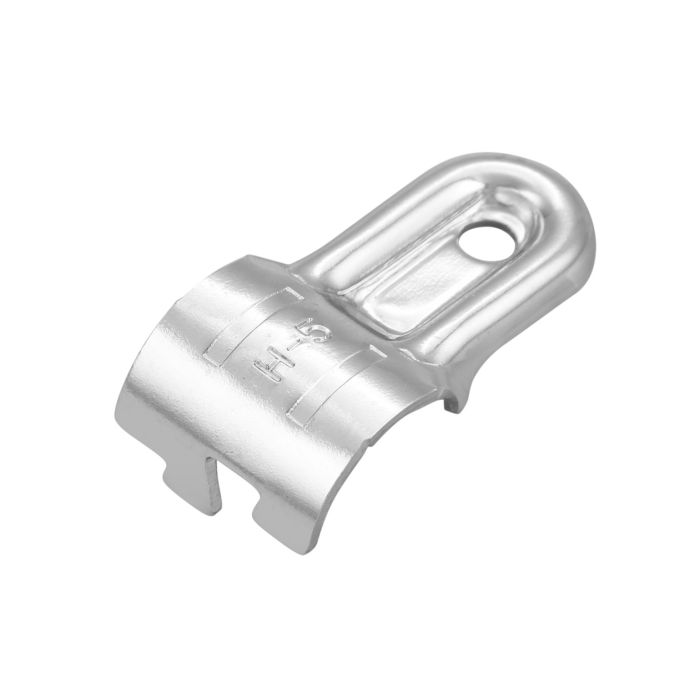

The H-5NP is a anti-static metal single joint used to assemble the HJ-6NP Flexpipe joint set. This connector can also be grouped with another H-5NP to connect a pipe and a surface. The main difference between using this technique and using the HJ-15NP connector is that the surface will be aligned with the pipe center and not the tube’s edge when using the HJ-15NP.
The H-5NP was designed with two internal striations for greater grip on the pipe’s outer coating. Be sure to reinforce the H-5NP if you are using them to support a surface. This can be done easily with two F-A858 screws.

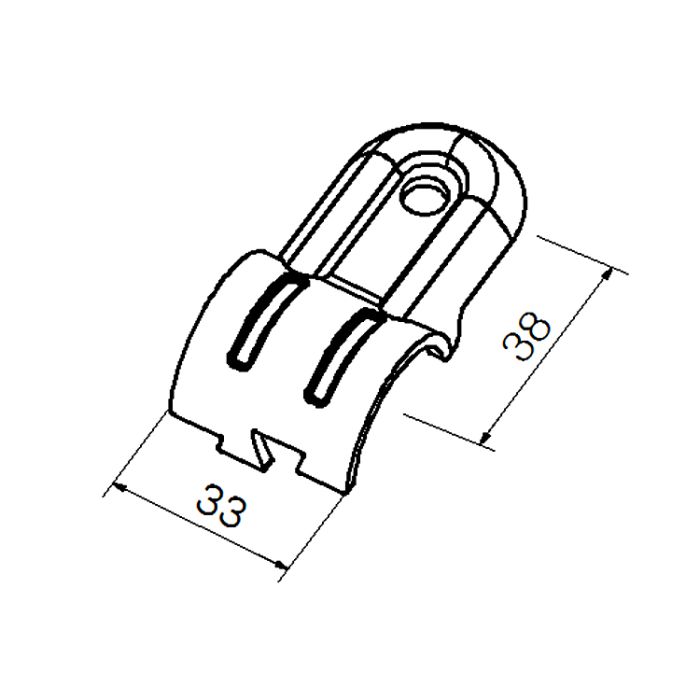

| Box Quantity | 225 |
|---|---|

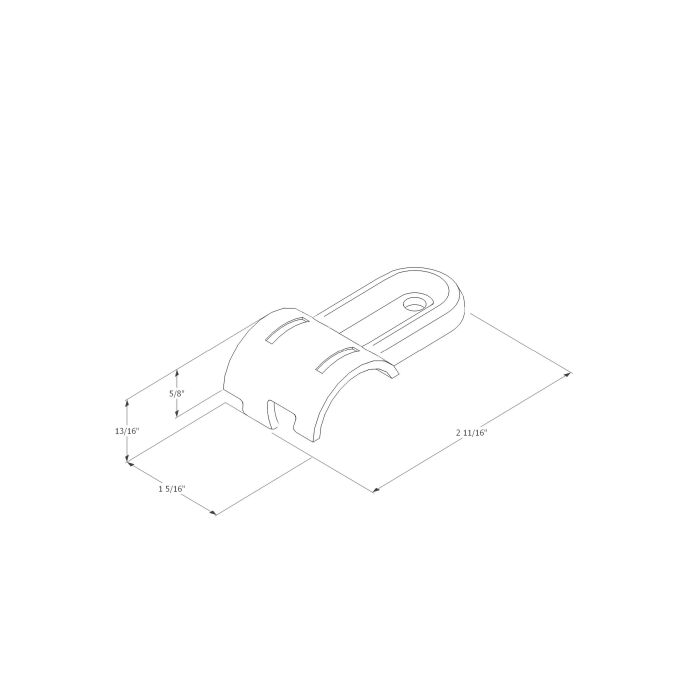

| Length | 2 11/16 in (68 mm) |
| Height | 3/4 in (19 mm) |
| Width | 1 5/16 in (33 mm) |
| Weight (kg/lbs) | 0.099 lb (0.045 kg) |
| Box Dimensions | Cardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm) |
| Compatible brand | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Non Compatible Brand | Fastube, Trilogiq (28.6 mm) |
| Primary Material | Hot rolled steel (SPHC) with chrome plating |
| Temperature Resistance | -148°F to 572°F (-100°C to 300°C) |
| Electric Conductivity (ESD) | Yes (10– 10^3) |
| Manufacturing Technique | Stamping and deburring |
