HJ-6ANP
Pivot Tee Joint Set Steel - ESD
$0.00
Fast Shipping quote upon checkout
In stock
Various payment methods available
Ready for dispatch upon order confirmation
Pivot Tee Joint Set Steel – ESD
$0.00
- Adjustable from 15 degrees up to 260 degrees
- Compatible with 28 mm pipes
- Assembly required
- Nuts and bolts are included, but packaged separately – Joint set with antistatic properties (ESD)
Description

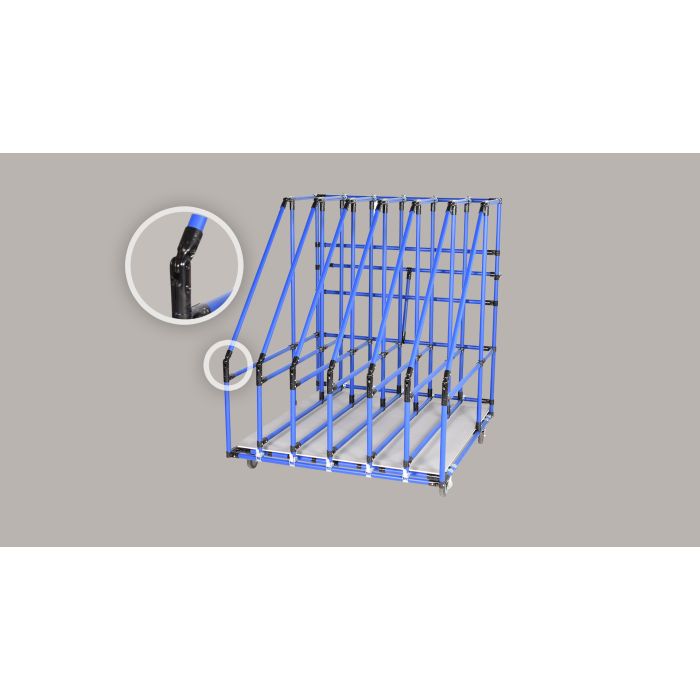

The HJ-6ANP is a chrome-plated joint set with antistatic properties (ESD) that allows creating a two-pipe intersection with an adjustable angle up to 260 degrees. This joint set allows working with a wider angle radius than the account – HJ-6NP allows. It can be used for many applications such as the creation of angular sides and top or V-shaped racks with angles wider than 90 degrees. The distance created between the two pipes is used for supporting pannels or manufacturing parts.
To assemble an HJ-6ANP you need to combine two account – H-6ANP and two account – H-6NP together with three account – M6-25BWZ bolts and three account – M6-NWZ nuts.
Installation Steps:
See the installation steps tab to view how to assemble this connector.
Non-Electric Conductivity Version:
A version of this joint set is offered without antistatic properties: account – HJ-6A
Want to reuse parts of your old system?
The HJ-6ANP Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
Please note that nuts and bolts are included, but packaged separately. Assembly is required.

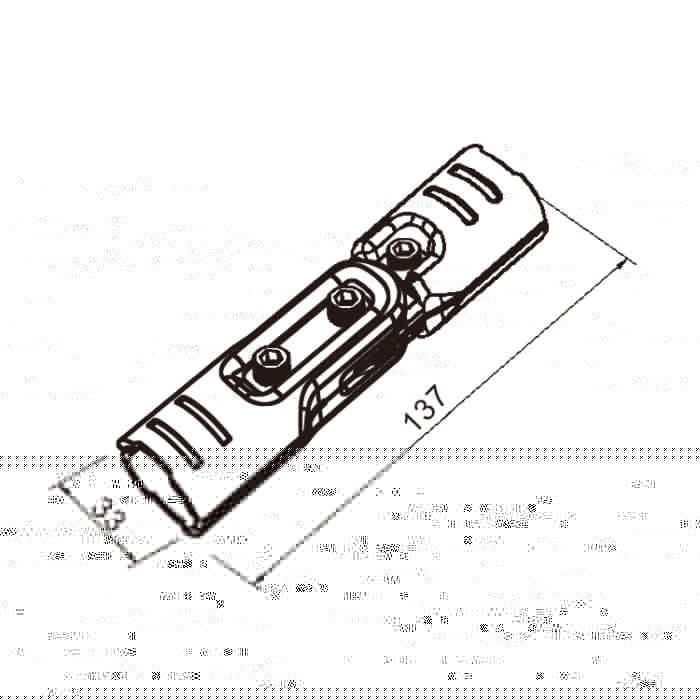

| Length | 5 7/16 in (138 mm) |
|---|---|
| Height | 1 5/16 in (33 mm) |
| Width | 1 5/16 in (33 mm) |
| Material Thickness | 1/8 in (2.5 mm) |
| Weight | 0.609 lb (0.277 kg) |
| Compatible brand | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Non Compatible Brand | Fastube, Trilogiq (28.6 mm) |
| Primary Material | Hot rolled steel (SPHC) |
| Temperature Resistance | -148°F to 572°F (-100°C to 300°C) |
| Electric Conductivity (ESD) | Yes |
| Manufacturing Technique | Stamping and deburring |

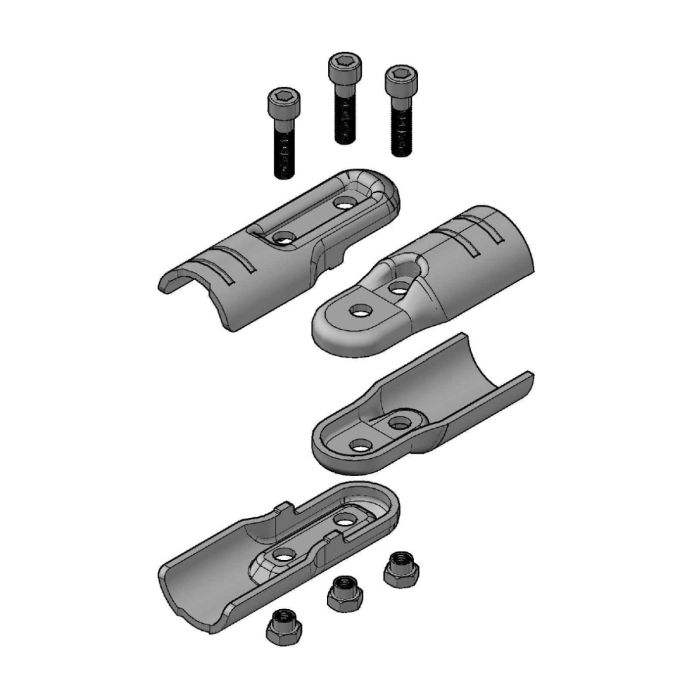

- Ensure you have the following parts:
- 2x account - H-6NP
- 2x account - H-6ANP
- 3x account - M6-25BWZ
- 3x account - M6-NWZ
- 2x 28mm ESD pipes of your choice
- 1x TD-HANLE 5mm hex key
- Take the two H-6NP connectors and group them around the first pipe.
- Fix the connectors by placing a bolt with a nut in the corresponding openings until it's firmly attached to the pipe.
- Group together with the two H-6ANP connectors around the second pipe and fix the connectors with a bolt and a nut in the corresponding openings until it's firmly attached to the second pipe.
- Insert the first pipe with the attached H-6NP connectors in between the H-6ANP connectors and loosely tighten with the remainings bolt and the nut to both H-6NP and H-6ANP connectors through corresponding openings.
- Position into the desired angle and tighten completely until the HJ-6ANP joint set is firmly attached to the first and the second pipe.
