HJ-6NP
Pivot Tee Joint Set Steel - ESD
$0.00
Fast Shipping quote upon checkout
In stock
Various payment methods available
Ready for dispatch upon order confirmation
Pivot Tee Joint Set Steel – ESD
$0.00
- Adjustable from 0 degrees up to 180 degrees
- Compatible with 28 mm pipes
- Assembly required
- Nuts and bolts are included, but packaged separately – Joint set with antistatic properties (ESD)
Description

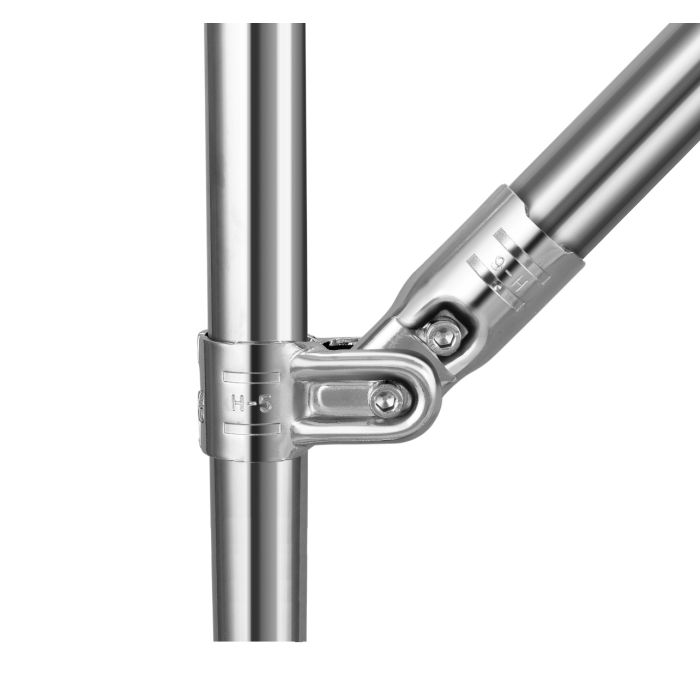

The HJ-6NP is a chrome-plated joint set with antistatic properties (ESD) that allows creating a two-pipe intersection with an adjustable angle. This joint set is used in many applications to create an opening or bracing.
To assemble an HJ-6NP you need to combine two account – H-5NP and two account – H-6NP together with two account – M6-25BWZ bolts and two account – M6-NWZ nuts.
Assembly tip:

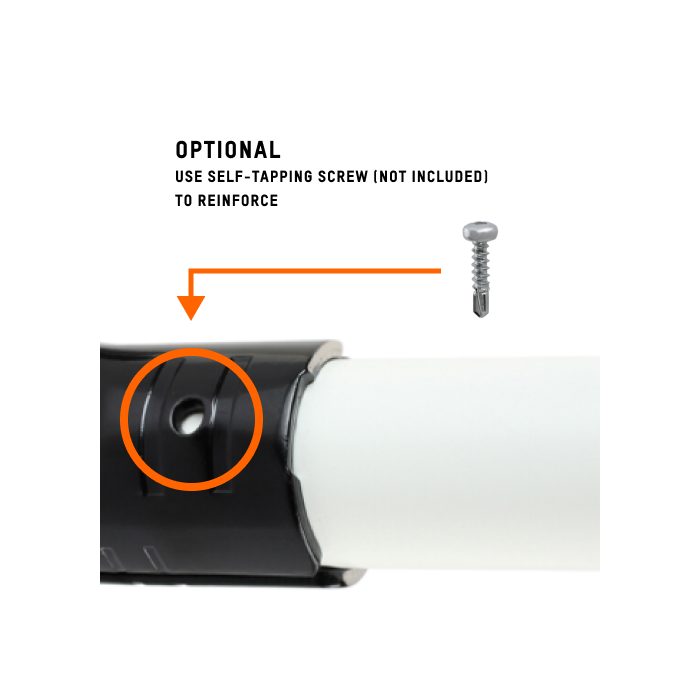

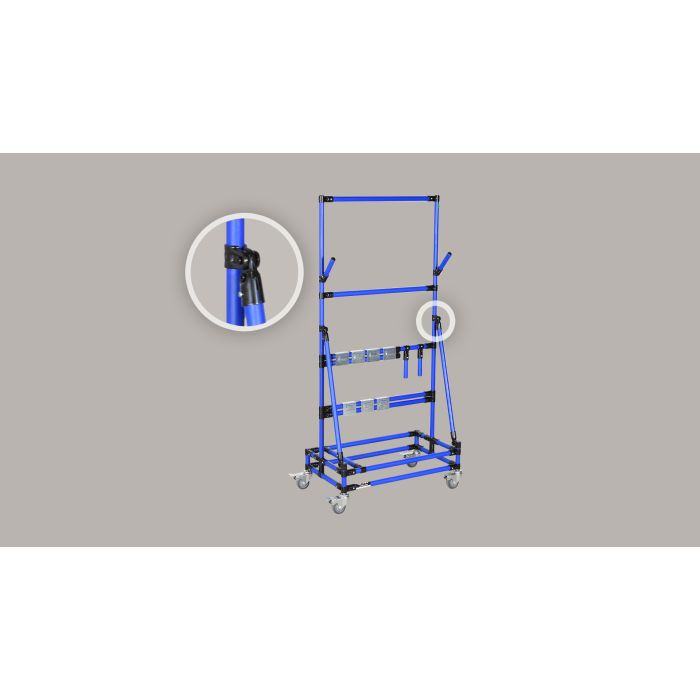

This joint set will create a distance of an inch between the two pipes. This distance is used for supporting pannels or manufacturing parts. It is also possible to use the HJ-6NP to create a door or a folding table hinge. Before considering the HJ-6NP, we suggest thinking of using other joint sets: account – HJ-12NP or HJ-23NP
Technical Information:
This joint set is designed with 8 striations for a better grip on the plastic coating of the 28 mm pipes.
Installation Steps
See the installation steps tab to view how to assemble this connector.
Non-Electric Conductivity Version:
A version of this joint set is offered without antistatic properties: account – HJ-6
Want to reuse parts of your old system?
The HJ-6NP Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
Please note that nuts and bolts are included, but packaged separately. Assembly is required.

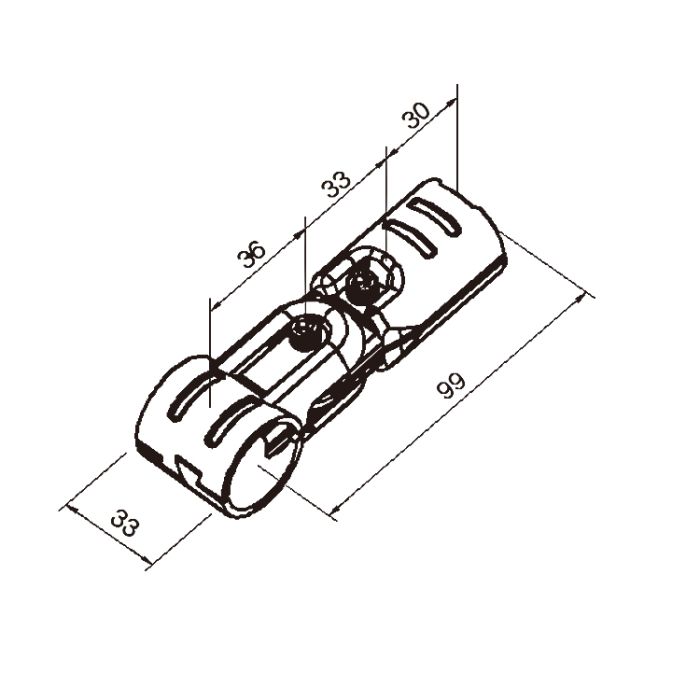

| Length | 4 5/8 in (117 mm) |
|---|---|
| Height | 1 5/16 in (33 mm) |
| Width | 1 5/16 in (33 mm) |
| Material Thickness | 1/8 in (2.5 mm) |
| Weight | 0.497 lb (0.226 kg) |
| Compatible brand | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Non Compatible Brand | Fastube, Trilogiq (28.6 mm) |
| Primary Material | Hot rolled steel (SPHC) with chrome plating |
| Temperature Resistance | -148°F to 572°F (-100°C to 300°C) |
| Electric Conductivity (ESD) | Yes (10– 10^3) |
| Manufacturing Technique | Stamping and deburring |

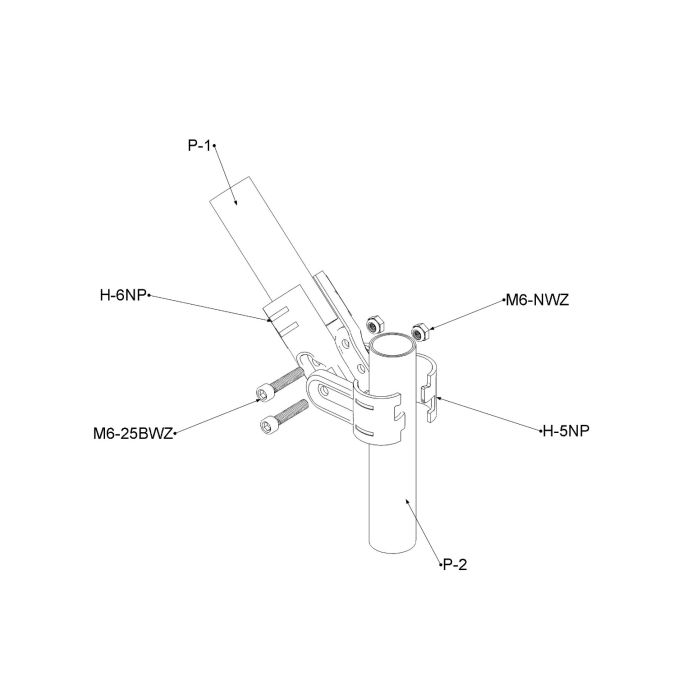

- Ensure you have the following parts:
- 2x account - H-5NP
- 2x account - H-6NP
- 2x account - M6-25BWZ
- 2x account - M6-NWZ
- 2x 28mm ESD pipes of your choice
- 1x T-HANDLE 5mm hex key
- Take the two H-6NP connectors and group them around the first pipe.
- Fix the connectors by placing a bolt with a nut in the corresponding openings until it's firmly attached to the pipe.

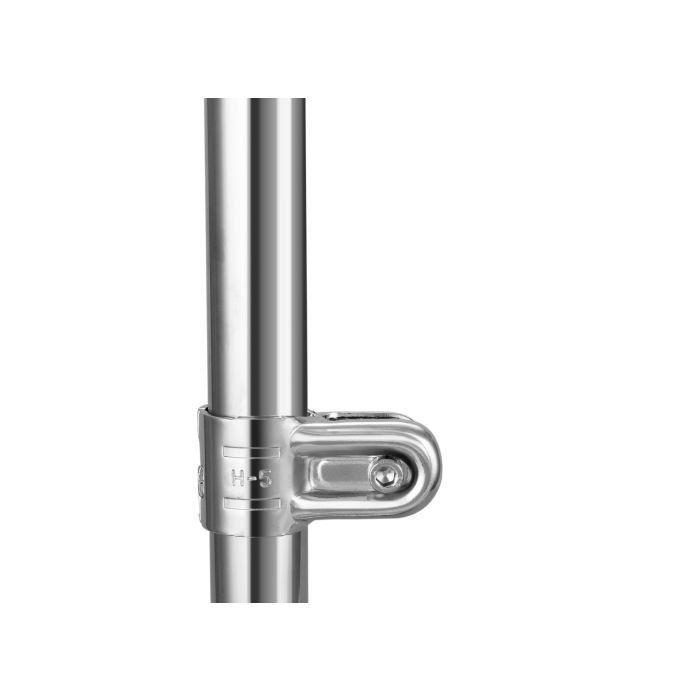

- Group together the two H-5NP connectors around the second pipe and insert the first pipe with the attached H-6NP's. Loosely tighten with the remaining bolt and nut through both H-5NP and H-6NP.
- Position into the desired angle and tighten completely until the HJ-6NP joint set is firmly attached to the two pipes.
