R85-CS
R85 Roller Track Mount Stabilizer Bracket
$0.00
Fast Shipping quote upon checkout
Out of stock
Various payment methods available
Ready for dispatch upon order confirmation
R85 Roller Track Mount Stabilizer Bracket
- ESD-safe steel connector for conveyor extensions
- Extends conveyor rails up to 16 ft
- Compatible with 1 1/16 in (28 mm) pipe systems
- Ideal for modular conveyor setups
Description
The R85-CS is an electrostatic discharge (ESD) compliant steel stabilizer bracket designed to connect and extend R85 roller tracks up to 16 feet in length. Ideal for modular conveyor builds, it helps maintain flow stability while supporting lean material handling layouts.
Key Features
- Conveyor Extension – Connects two R85-RT96 conveyor rails to reach up to 16 ft in total length.
- ESD Compliance – Made from steel with antistatic properties to protect electronic components during transport.
- Secure Connection – Built for a firm hold between tracks to maintain structure alignment and performance.
- Easy Assembly – Installs quickly with minimal tools; check the Installation Steps tab for guidance.
- System Compatibility – Fits with the R85-RT96 and all 1 1/16 in (28 mm) pipe and joint systems.
Although the R85-CS can join two roller tracks for extended configurations, lean principles suggest that several smaller gravity racks are often more efficient than one large structure.
Add the R85-CS to your structure to expand your flowracks or lean warehouse with ease. Flexpipe’s modular solutions support multiple industries, including warehousing, aerospace, and corrugated packaging. Don’t forget to take advantage of our cutting service and assembly service to simplify your build.
Explore installation ideas and modular rack configurations in our flow rack guide.

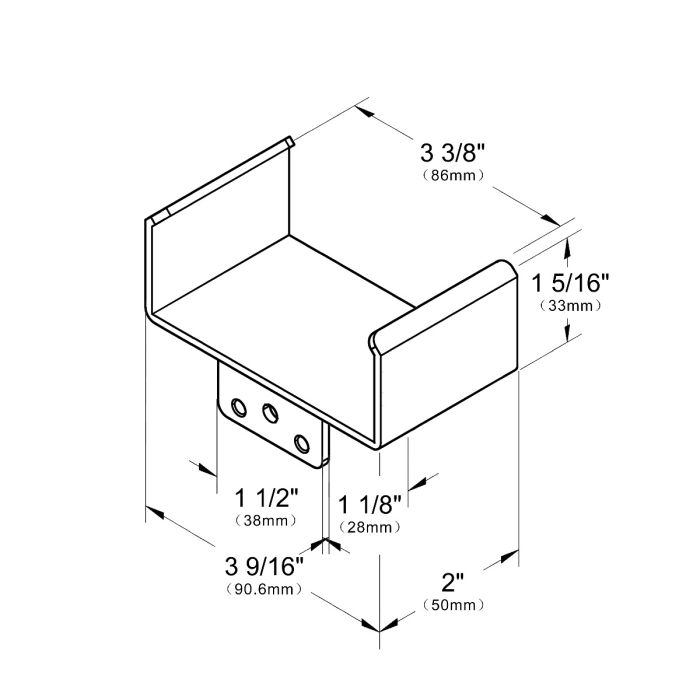

| Box Quantity | 60 |
|---|---|
| Length | 2 in (50 mm) |
| Height | 1 5/16 in (33 mm) |
| Width | 3 9/16 in (90.6 mm) |
| Weight | 0.55 lb (0.25 kg) |
| Non Compatible Brand | Trilogiq |
| Primary Material | Galvanised hot rolled steel (SPHC) |
| Temperature Resistance | -148°F to 428°F (-100°C to 220°C) |
| Electric Conductivity (ESD) | Yes |
| Manufacturing Technique | Pressed and deburring |
- Ensure you have the following parts:
- 1x R85-CS
- 1x F-A858
- 1x tube de 28mm
- 1x R85-RT96
- 1x Drill
- Insert the R85-RT96 inside the R85-CS.
- If you want to use the R85-CS as a connector for two conveyor rails, simply insert each of the R85-RT96 halfway inside the R85-CS.
- Hang the R85-CS on the tube perpendicularly.
- Screw an F-A858 through the tube into the corresponding opening to secure the R85-CS bracket.
