HJ-90NP
Round Joint Set Steel - ESD
$0.00
Fast Shipping quote upon checkout
In stock
Various payment methods available
Ready for dispatch upon order confirmation
Round Joint Set Steel – ESD
$0.00
- Compatible with 28 mm pipes
- Assembly required
- Nuts and bolts are included, but packaged separately – Joint set with antistatic properties (ESD)
Description

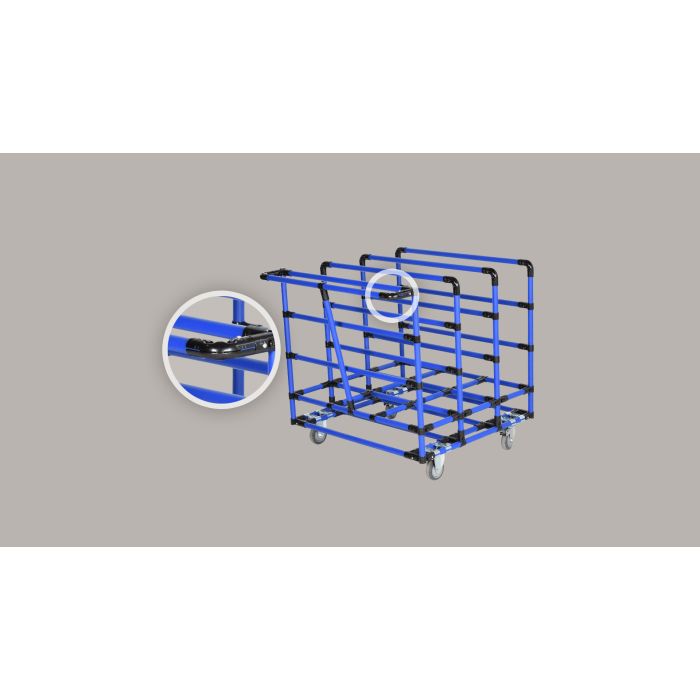

The HJ-90NP is a chrome-plated joint set with antistatic properties (ESD) that allows connecting two 28 mm pipes to create a 90-degree corner. This joint set is often used for ergonomic cart handles.
To assemble an HJ-90NP you need to put two account – H-90NP together with two account – M6-25BWZ bolts and two account – M6-NWZ nuts.
Technical Information:
This joint set is designed with 8 striations for a better grip on the plastic coating of the 28 mm pipes. It also includes 4 additional pre-drilled reinforcement holes to ensure extra strength to your structure. By adding a self-drilling screw account – F-A858, you will solidify the connector joints positioned on a corner where there is a higher risk of impact.
Installation Steps:
See the installation steps tab to view how to assemble this connector.
Non-Electric Conductivity Version:
A version of this joint set is offered without antistatic properties: account – HJ-90
Want to reuse parts of your old system?
The HJ-90NP Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
Please note that nuts and bolts are included, but packaged separately. Assembly is required.

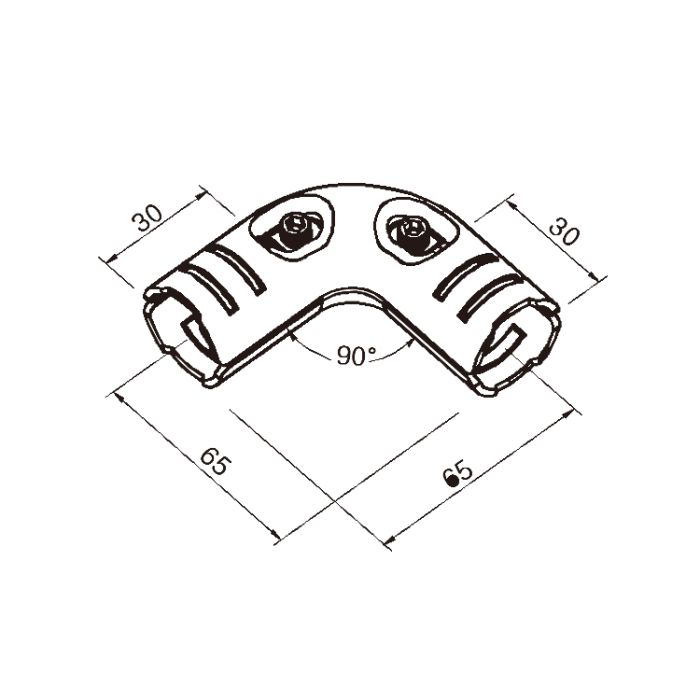

| Length | 1 5/16 in (33 mm) |
|---|---|
| Height | 1 5/16 in (33 mm) |
| Width | 1 5/16 in (33 mm) |
| Material Thickness | 1/8 in (2.5 mm) |
| Weight (kg/lbs) | 0.488 lb (0.222 kg) |
| Compatible brand | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Non Compatible Brand | Trilogiq (28.6 mm) |
| Primary Material | Hot rolled steel (SPHC) with chrome plating |
| Temperature Resistance | -148°F to 572°F (-100°C to 300°C) |
| Electric Conductivity (ESD) | Yes (10– 10^3) |
| Manufacturing Technique | Stamping and deburring |
- Ensure you have the following parts:
- 2x H-90NP
- 2x M6-25BWZ bolts
- 2x M6-NWZ nuts
- 2x 28mm pipes of your choice
- 1x T-HANDLE 5mm hex key
- Group the two H-90NP connectors around the first and the second pipe, between the first and the second positionning guidelines.
- Fix the connectors together by placing the M6-25BWZ bolts with the M6-NWZ nuts in the corresponding openings. Make sure to place the bolts on the most accessible side.
- Tighten completely until the HJ-90NP joint set is firmly attached to the two pipes. A force between 12-14 Nm is recommended for this step.
