AF-RUB
Rubber Foot
$0.00
Fast Shipping quote upon checkout
In stock
Various payment methods available
Ready for dispatch upon order confirmation
Rubber Foot
$0.00
- Easily attaches to any 28mm pipe
- Durable heavy-duty rubber prevents skidding
- Moisture resistant, help reduce noise
Description
The AF-RUB is a rubber cap often used as a foot or protective cap. These anti-skid rubber caps are resistant to moisture and help reduce noisy movement.
Due to its rubber composition, it absorbs shock very well and can be adapted to many applications.

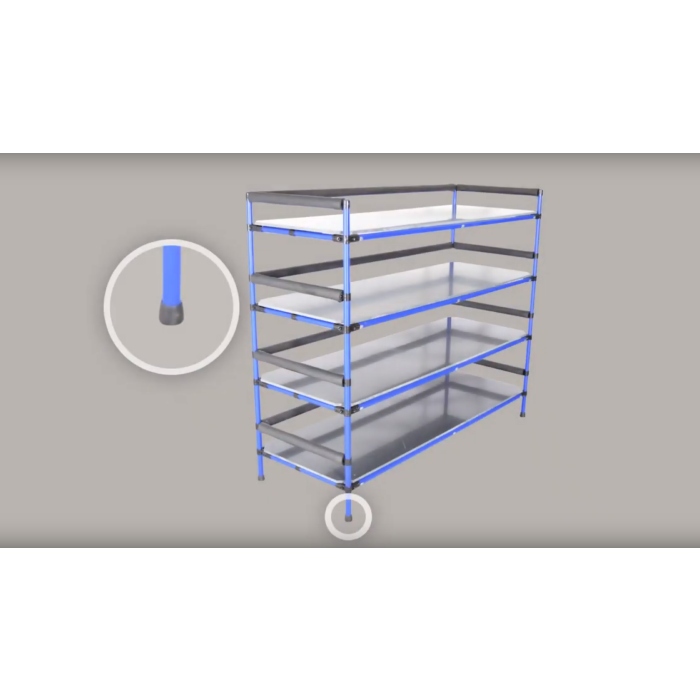

Use it for stacking structures in combination with the AF-STACK.
The AF-RUB will add 1/8″ to your overall height/dimension, be sure to adjust your calculations accordingly.
Installation Steps
See the installation steps tab to view how to assemble the AF-RUB.
Want to reuse parts of your old system?
The AF-RUB is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
All AF-RUB are sold individually.
To make it easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system considers a single amount only. Please enter the total amount of AF-RUB you wish to receive (example; 100 units = 1 box).
Additional information
| ESD |
|---|
| Box Quantity | 100 |
|---|---|
| Length | 1 1/2 in (38 mm) |
| Height | 1 7/16 in (36.52 mm) |
| Width | 1 1/2 in (38 mm) |
| Weight | 0.082 lb (0.263 kg) |
| Box Dimensions | Cardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm) |
| Common Usage | Foot or protective cap |
| Compatible brand | Flexpipe, Creform, Fastube |
| Primary Material | Rubber |
| Temperature Resistance | -58°F to 185°F (-50°C to 85°C) |
| Electric Conductivity (ESD) | No |
| Loading Capacity | 250 lb (113.4 kg) |
- Ensure you have the following parts:
- 1x AF-RUB
- 1x 28mm pipe of your choice
- 1x Mallet
- Push AF-RUB into P1 pipe
- If necessary finish pushing into place with the aid of a mallet
