HJ-8NP
Side Anchor Joint Set Steel - ESD
$0.00
Fast Shipping quote upon checkout
In stock
Various payment methods available
Ready for dispatch upon order confirmation
Side Anchor Joint Set Steel – ESD
$0.00
- Compatible with 28 mm pipes
- Assembly required
- Nuts and bolts are included, but packaged separately – Joint set with antistatic properties (ESD)
Description

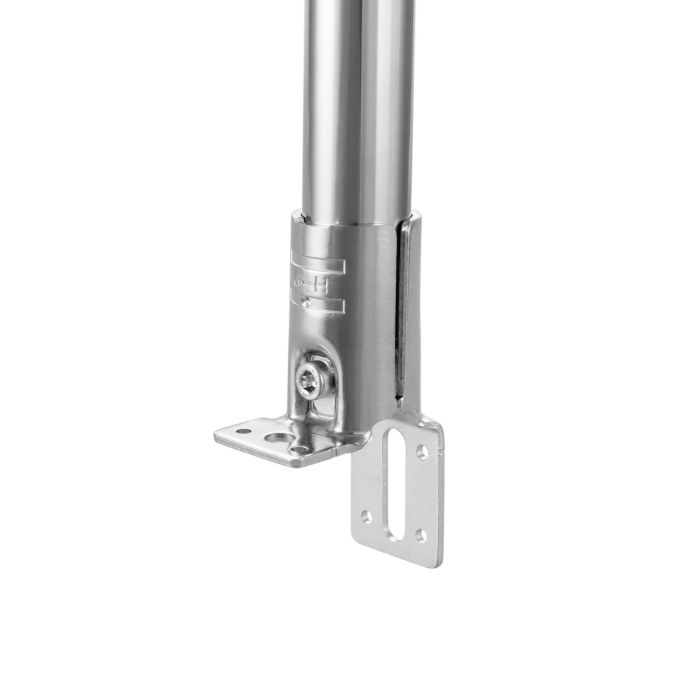

The HJ-8NP is a chrome-plated joint set with antistatic properties (ESD) that allows connecting a surface to your structures, just like an anchor. This connector is designed to be attached to the edges of your surfaces and structures.

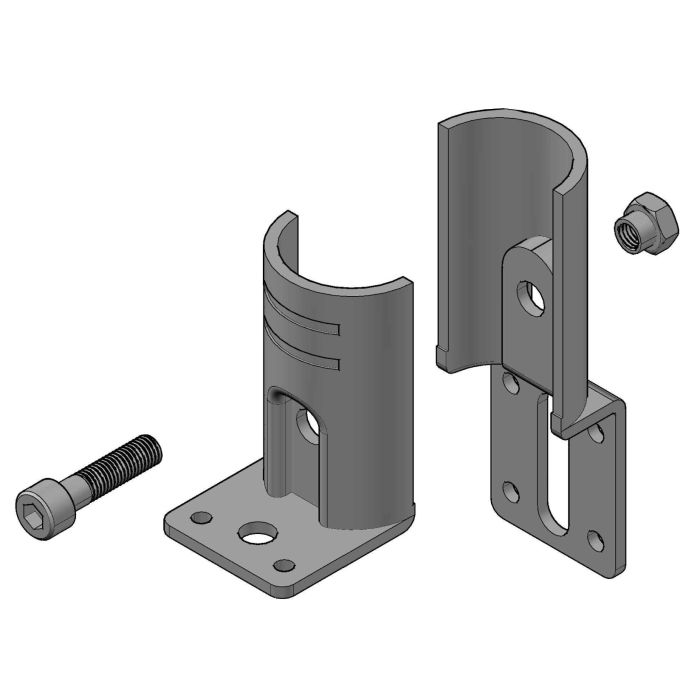

To assemble an HJ-8NP you need to combine an H-8NP and an account – H-9NP together with one account – M6-25BWZ bolt and one account – M6-NWZ nut.
Assembly tip:
This joint set has the benefit of allowing you to use a component of another system than Flexpipe. In this way, you can create hybrid structures such as workstations with aluminum or wooden shelves, for example. This anchorage can also be used as safety support under a surface. Psst! You might be interested in the account – HJ-9NP joint set as well.
Installation Steps:
See the installation steps tab to view how to assemble this connector.
Non-Electric Conductivity Version:
A version of this joint set is offered without antistatic properties: account – HJ-8
Want to reuse parts of your old system?
The HJ-8NP Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
Please note that nuts and bolts are included, but packaged separately. Assembly is required.

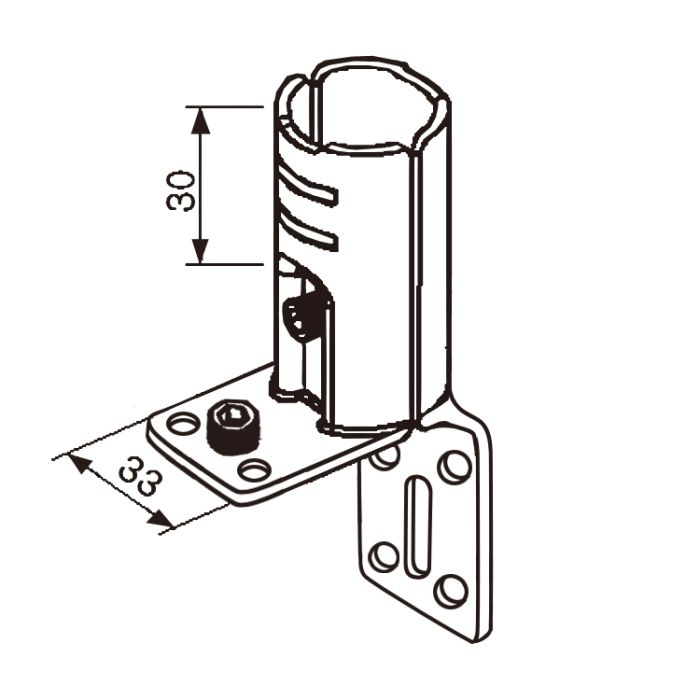

| Length | 3 3/4 in (95 mm) |
|---|---|
| Height | 1 5/16 in (33 mm) |
| Width | 1 5/16 in (33 mm) |
| Material Thickness | 1/8 in (2.5 mm) |
| Weight | 0.304 lb (0.138 kg) |
| Compatible brand | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Non Compatible Brand | Fastube, Trilogiq (28.6 mm) |
| Primary Material | Hot rolled steel (SPHC) with chrome plating |
| Temperature Resistance | -148°F to 572°F (-100°C to 300°C) |
| Electric Conductivity (ESD) | Yes |
| Manufacturing Technique | Stamping and deburring |

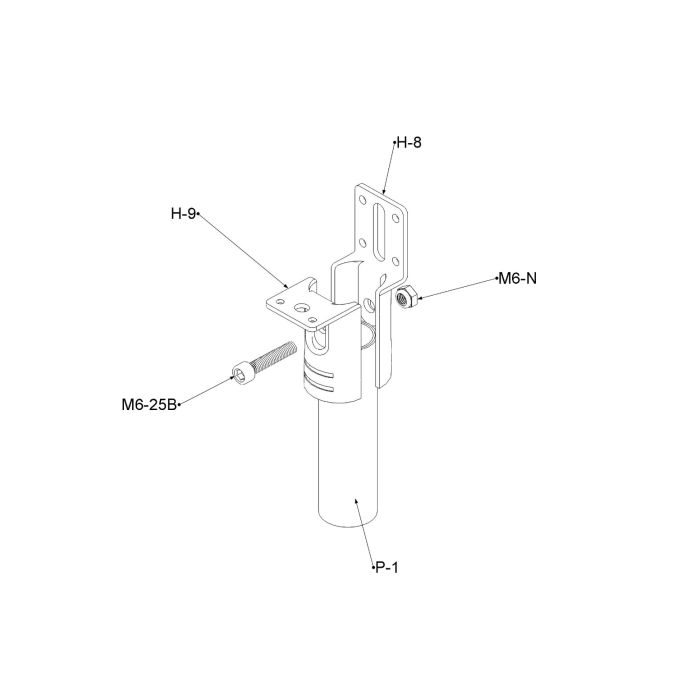

- Ensure you have the following parts:
- 1x account - H-8NP
- 1x account - H-9NP
- 1x account - M6-25BWZ
- 1x account - M6-NWZ
- 1x 28mm ESD pipe of your choice
- 1x T-HANDLE 5mm hex key
- Take an H-8NP and an H-9NP connector and group them around the pipe.
- Fix the connectors together by placing the M6-25BWZ with the M6-NWZ in the corresponding openings and completely tighten until the HJ-8NP joint set is firmly attached to the pipe.
- Fix the HJ-8NP on the surface of your choice with 6 F-SF81 or any appropriate screws for the desired surface.
