Stacked Open Intersection Joint Set Steel – ESD
$0.00
- Compatible with 28 mm pipes
- Assembly required; pieces sold separately
- Nuts and bolts are included, but packaged separately – Joint set with antistatic properties (ESD)
Description
The HJ-7ANP is a chrome-plated joint set with antistatic properties (ESD) that allows creating an intersection of two pipes, one above another. Very similar to the account – HJ-7NP, the only difference is that it is not completely closed. This connector allows the top tube to be in contact with a surface.

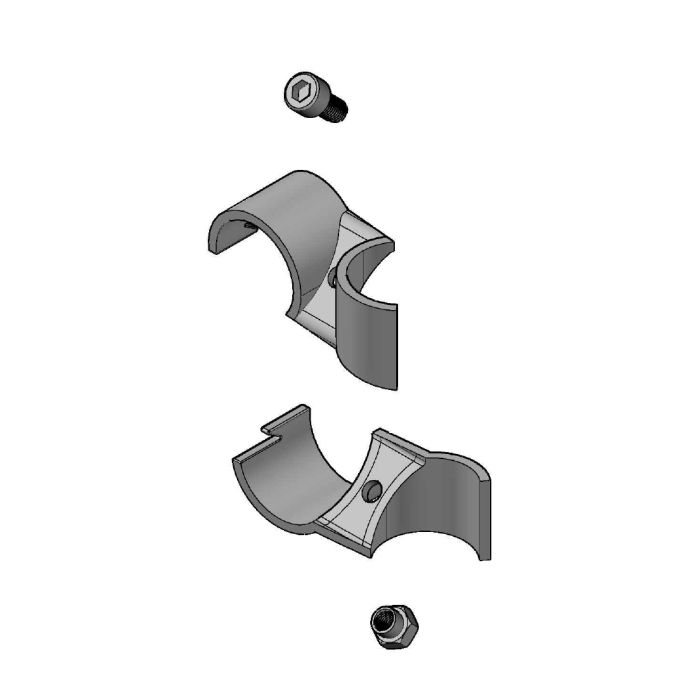

To assemble an HJ-7NP you need to combine two account – H-7ANP together with one account – M6-25BWZ bolt and one account – M6-NWZ nut.
Assembly tip:

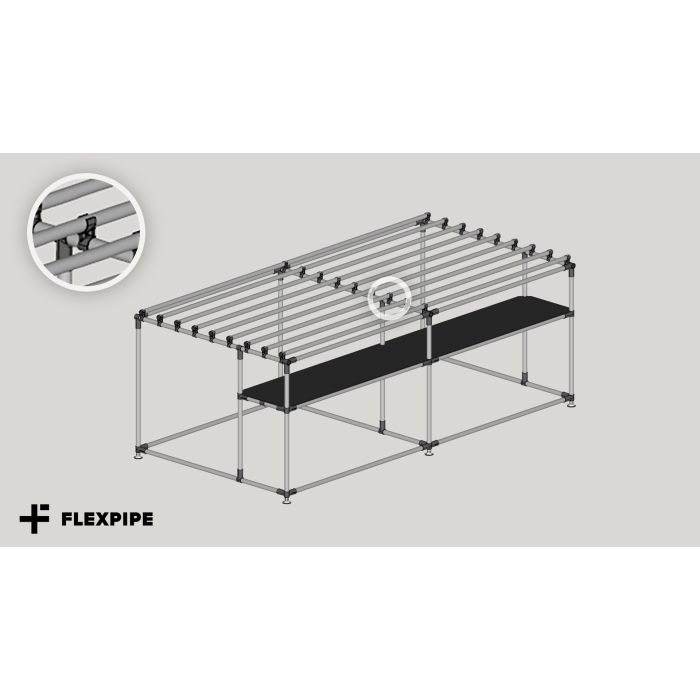

Very useful when building a tight area with the AI-CORNER and AI-CENTER accessories and you want to create a wire mesh under the surface. This connector also avoids the use of AO-SHIM. For more strengthen structures, we recommend using the HJ-7NP as much as possible.
Installation Steps:
See the installation steps tab to view how to assemble this connector.
Non-Electric Conductivity Version:
A version of this joint set is offered without antistatic properties: account – HJ-7A
Want to reuse parts of your old system?
The HJ-7ANP Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
Please note that nuts and bolts are included, but packaged separately. Assembly is required.
| Length | 2 5/8 in (67 mm) |
|---|---|
| Height | 1 5/16 in (33 mm) |
| Width | 1 5/16 in (33 mm) |
| Material Thickness | 1/8 in (2.5 mm) |
| Weight | 0.196 lb (0.089 kg) |
| Compatible brand | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Non Compatible Brand | Fastube, Trilogiq (28.6 mm) |
| Primary Material | Hot rolled steel (SPHC) |
| Temperature Resistance | -148°F to 572°F (-100°C to 300°C) |
| Electric Conductivity (ESD) | Yes |
| Manufacturing Technique | Stamping and deburring |
- Ensure you have the following parts:
- 2x account - H-7ANP
- 1x account - M6-25BWZ
- 1x account - M6-NWZ
- 2x 28mm ESD pipes of your choice
- 1x T-HANDLE 5mm hex key
- Take the two H-7ANP connectors and group them around the first pipe.
- Fix the connectors by placing the M6-25BWZ with the M6-NWZ in the corresponding openings and loosely tighten.
- Slide the second pipe into the remaining opening of the HJ-7ANP joint set.
- Position at the desired place and tighten completely until the HJ-7ANP is firmly attached to the two pipes.
