EP-96-ST
Stainless 8 ft Steel Pipe ESD
$0.00
Fast Shipping quote upon checkout
Out of stock
Various payment methods available
Ready for dispatch upon order confirmation
Stainless 8 ft Steel Pipe ESD
- Compatible with 28 mm pipe systems
- Stainless steel construction for ESD safety
- Ideal for static-sensitive environments
- Ready for custom cutting options
Description
The EP-96-ST is an 8 ft stainless steel pipe designed for lean manufacturing structures requiring ESD compliance. Its 28 mm outer diameter fits standard modular joints, and its conductive surface supports electrostatic protection in static-sensitive areas.
Key Features & Benefits
- ESD Compliant: Prevents electrostatic discharge in sensitive zones
- Modular Integration: Fits all 28 mm joint systems
- Reliable Construction: Made from conductive stainless steel
- Custom Lengths: Compatible with our cutting service
Learn more about ESD protection
Additional information
| Diameter | |
|---|---|
| Length | |
| Color | |
| Material thickness | |
| Pipe Protector | |
| ESD |
| Color | Galvanized |
|---|---|
| Box Quantity | 8 |
| Length | 96 in (2438.4 mm) |

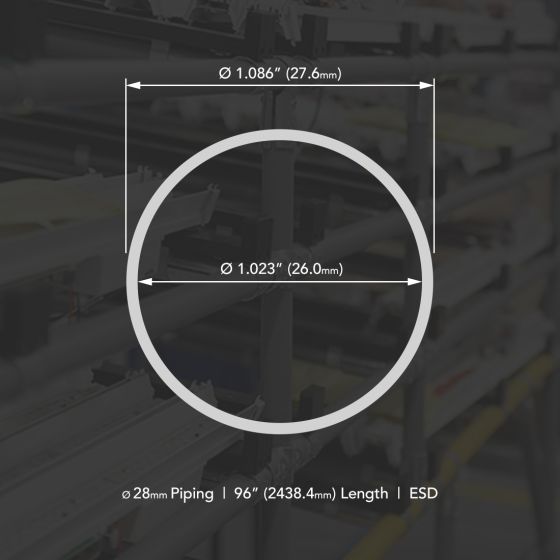

| Outside Diameter | 1 1/16 in (27.6 mm ± 0.2 mm) |
| Inside Diameter | 1 in (26 mm ± 0.2 mm) |
| Material Thickness | 1/32 in (0.7mm ± 0.15mm) |
| Weight | 2.508 lb (1.140 kg) |
| Box Dimensions | Plastic packaging 96 1/4 X 4 1/2 X 2 1/4 in (2445 mm X 114 mm X 57 mm) |

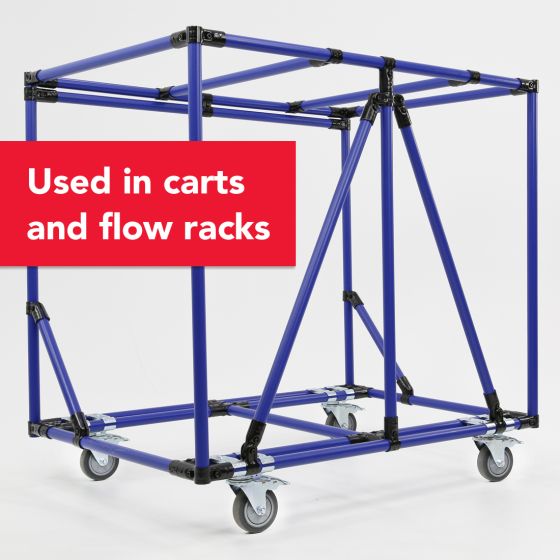

| Common Usage | Carts, Racks, Flow Racks, Workstations, Boards |
| Compatible brand | Creform, Fastube |
| Non Compatible Brand | Trilogiq |

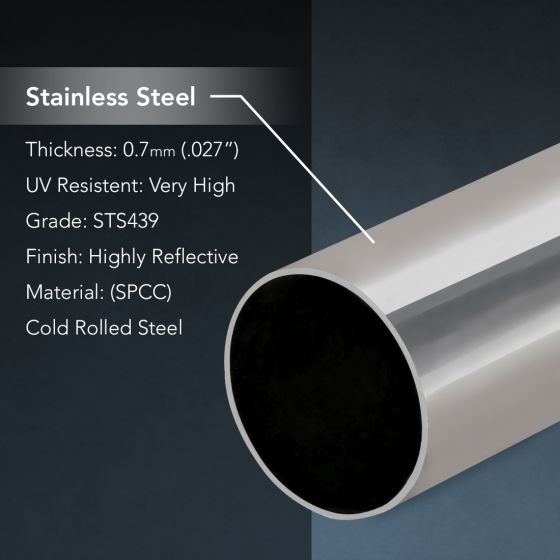

| Primary Material | Stainless steel ST 439 |
| Temperature Resistance | -4°F to 752°F (-20°C to 400°C) |
| Electric Conductivity (ESD) | Yes Yes (10– 10^3) |
| Manufacturing Technique | High frequency welding |
