Tee Hinge Joint Set Steel – ESD
$0.00
- Compatible with 28 mm pipes
- Nuts and bolts are included, but packaged separately
- Assembly required
- Joint set with antistatic properties (ESD)
Description
The HJ-12NP is a chrome-plated joint set with antistatic properties (ESD) that rotates 360 degrees. Very similar to the HJ-1NP, the HJ-12NP allows a rotation once this connector is fixed.
To assemble an HJ-12NP you need to put two H-12NP together with a hinge bracket AP-HINGE, an M6-25BWZ bolt and an M6-NWZ nut.
Assembly tip:

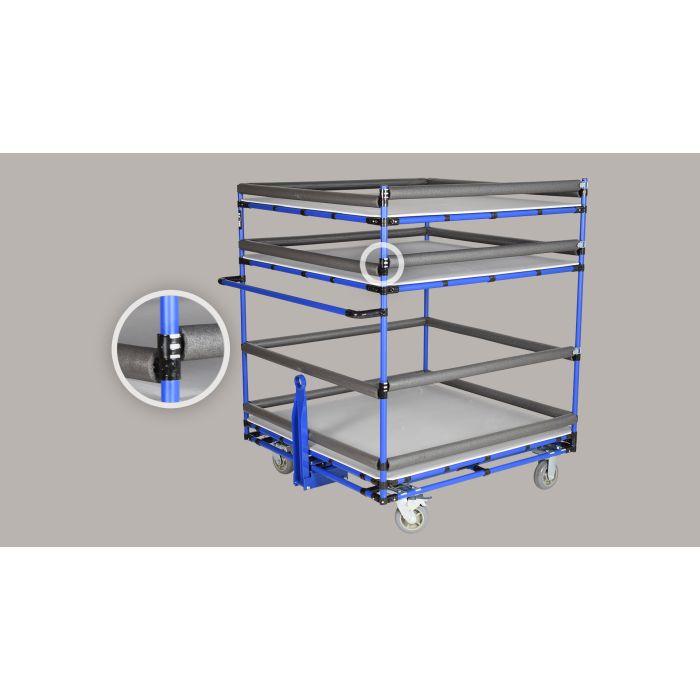

This joint set is frequently used to create doors, movable separators and foldable shelves. Psst! If you don’t need this joint set to be mobile, the HJ-1NP may be a better fit for your needs.
Technical Information:
This joint set is designed with 4 striations for a better grip on the plastic coating of the 28 mm pipes. It also includes 2 additional pre-drilled reinforcement holes to ensure extra strength to your structure. By adding a self-drilling screw F-A858, you will solidify the connector joints positioned on a corner where there is a higher risk of impact.
Installation Steps:
See the installation steps tab to view how to assemble this connector.
Non-Electric Conductivity Version:
A version of this joint set is offered without antistatic properties: HJ-12
Want to reuse parts of your old system?
The HJ-12NP Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
Please note that nuts and bolts are included, but packaged separately. Assembly is required.

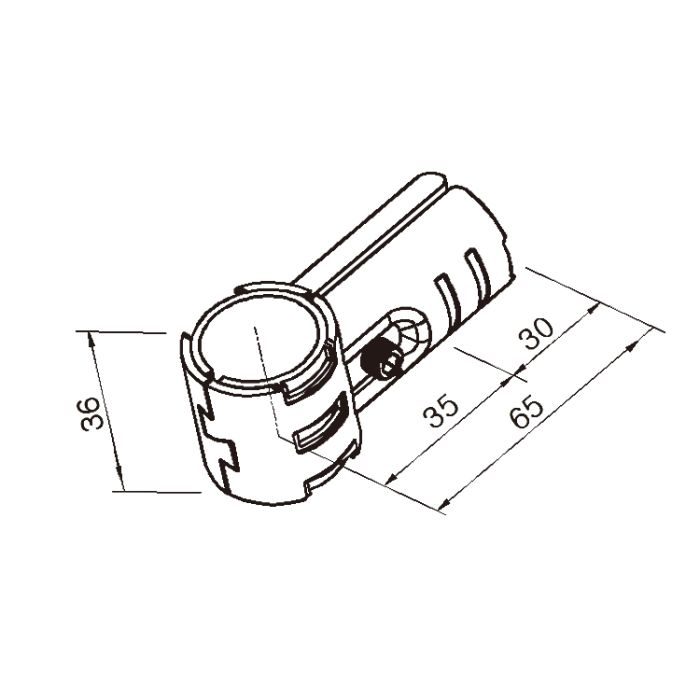

| Length | 3 5/16 in (84 mm) |
|---|---|
| Height | 1 7/16 in (36 mm) |
| Width | 1 5/16 in (33 mm) |
| Weight | 0.310 lb (0.141 kg) |
| Compatible brand | Creform, Fastube, Trilogiq, NIS, C Tek Lean Solutions (28 mm) |
| Non Compatible Brand | Trilogiq (28.6 mm) |
| Primary Material | Hot rolled steel (SPHC) with chrome plating |
| Secondary Material | Polyethylene (PE) |
| Temperature Resistance | -148°F to 572°F (-100°C to 300°C) |
| Electric Conductivity (ESD) | Yes (10– 10^3) |
| Manufacturing Technique | Stamping and deburring |
- Ensure you have the following parts:
- Take the AP-HINGE bracket and press it on the first pipe until it clips on, place the opening of the AP-HINGE toward inside of your structure.
- Group the two H-12NP connectors around the first pipe so that the teeth of the AP-HINGE fit into the corresponding openings of the connectors, ensuring proper installation.
- Fix the connectors together by placing the M6-25BWZ with the M6-NWZ in the corresponding openings and completely tighten until the HJ-12NP joint set is firmly attached to the pipe. Make sure to place the bolts on the most accessible side.
- If the HJ-12NP joint set feels too tight to rotate, apply a lubricant spray to ease the mobility of the AP-HINGE and to avoid damaging the plastic teeth.
- Add a metal screw to the pre-drilled reinforcement hole to secure the connector on the second pipe. This can be useful when this connector is used to make shelvings and prevent the material from falling.
