KIT-XXL
10 Structures Starter Kit
$0.00
Fast Shipping quote upon checkout
In stock
Various payment methods available
Ready for dispatch upon order confirmation
10 Structures Starter Kit
$0.00

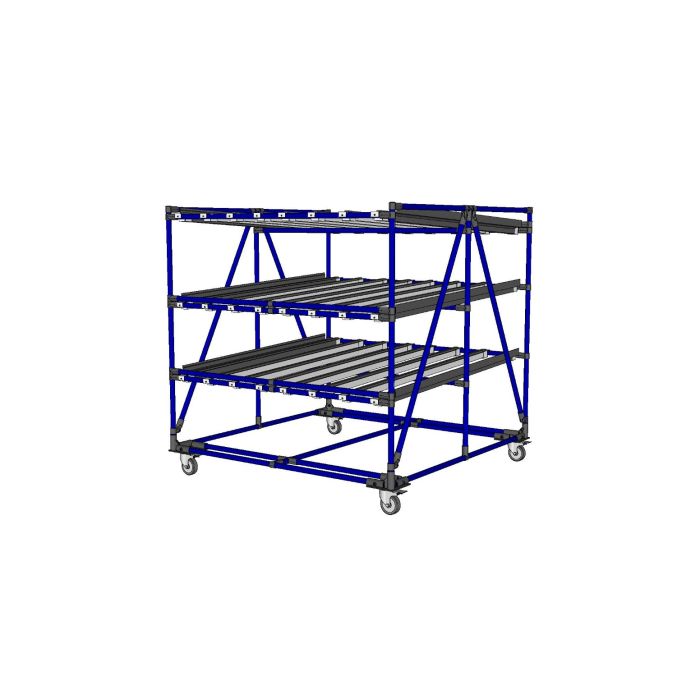

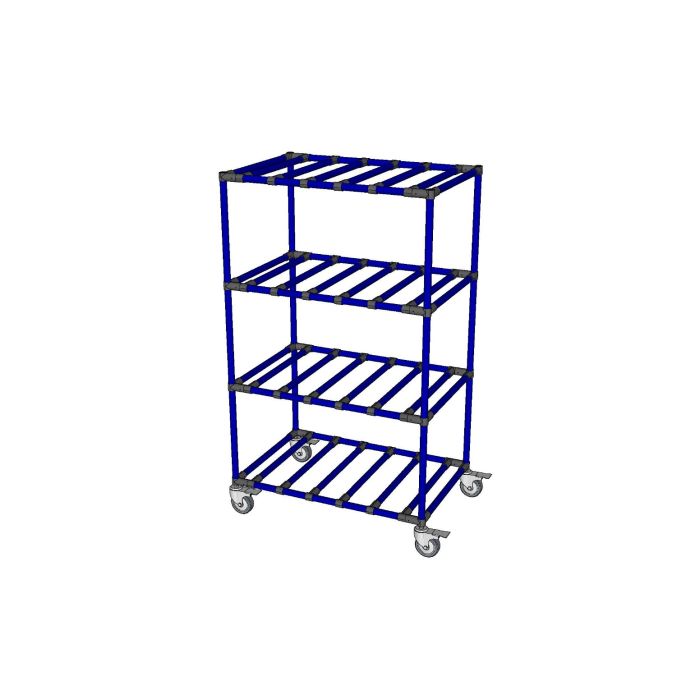

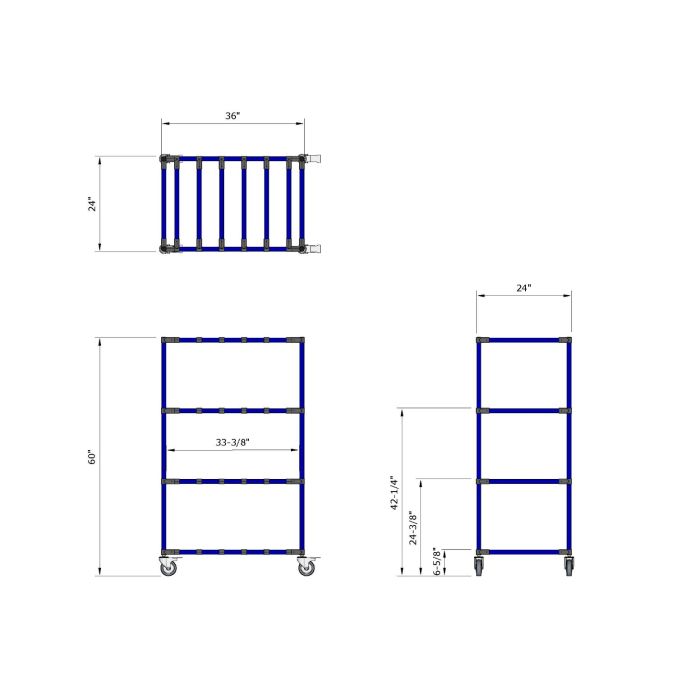

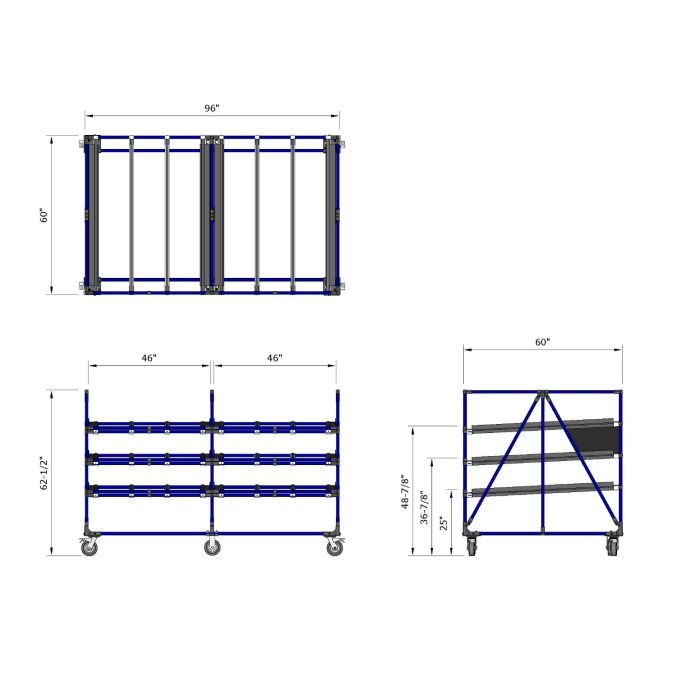

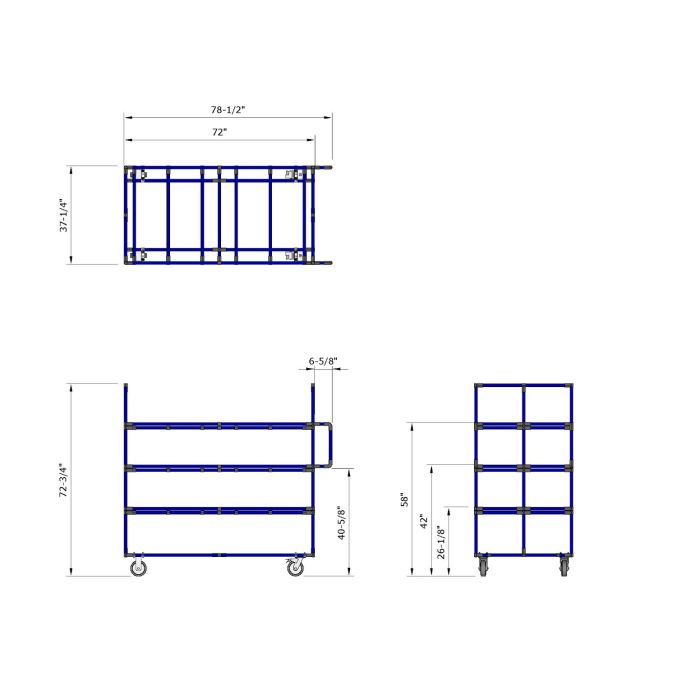

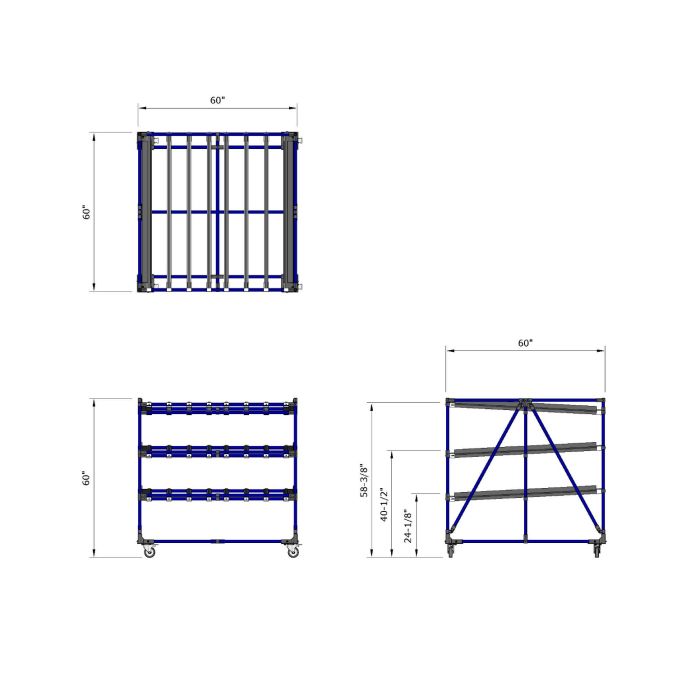

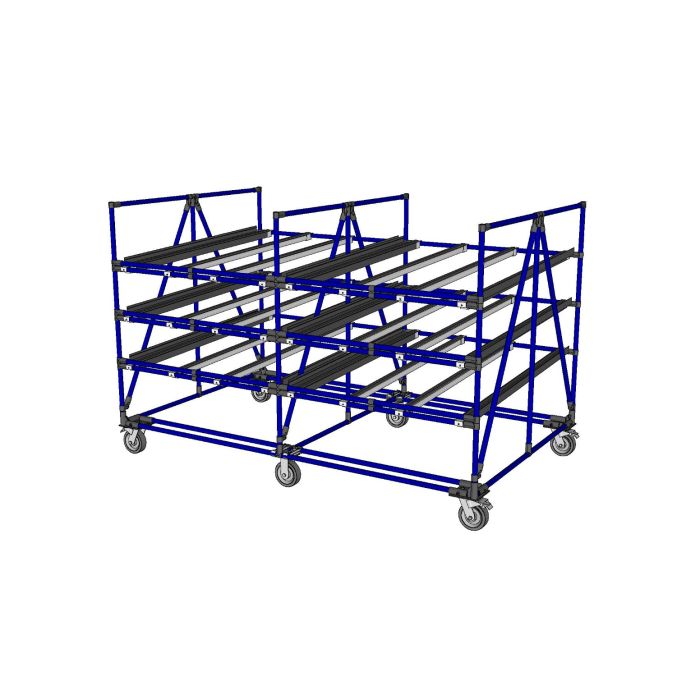

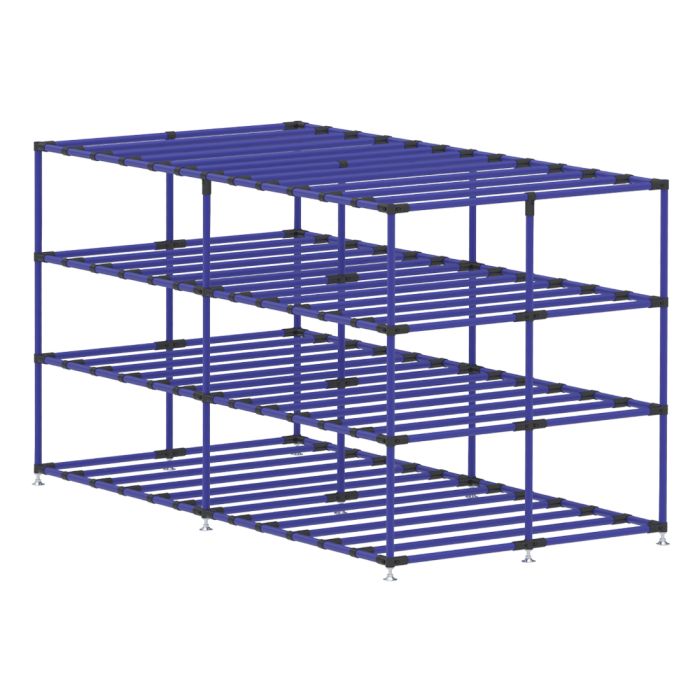

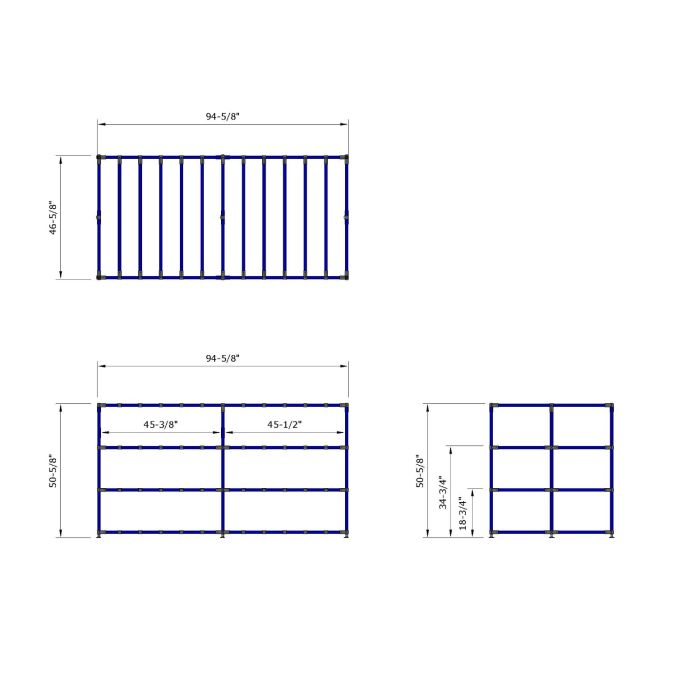

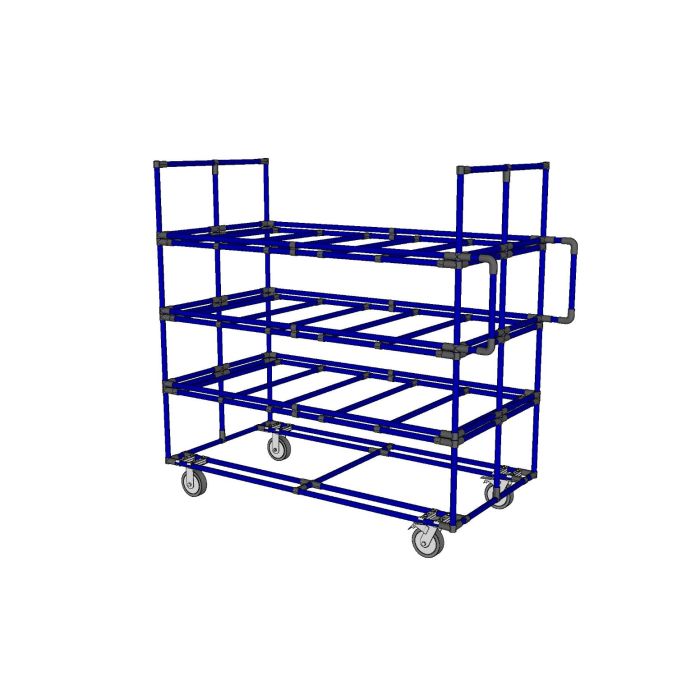

Everything you need in one box—pipes, connectors, wheels, and accessories—to quickly build flow racks or storage shelves or you can take the same parts and build your own fully, customized structures.
Description
Benefits
- Best way to ease your team into using this equipment – parts and plans in 1 package
- No more headaches of making sure that you have all the necessary parts
- No unnecessary leftover units
What’s included
- Most frequently used parts to build the structures, in sufficient quantity and ratio count
- Structure-specific components (e.g. conveyors for flow racks)
- Updated parts list (if applicable)
You will need
- Tool to cut your pipe to the desired length. If you don’t have any saw at your facility, we recommend the following tool to start: T-CUTTER
- For more information on which tools we recommend to build your project, read our blog articles Top 4 tools for cutting and Top 5 tools for assembling
Do you need to add a surface to your structure? See Deckings
List of Kit Products:
- 3 × AW-MOUNT — Monitor VESA Mounting Plate
- 56 × F-W516 — Washer for Caster Mounting Plates
- 8 × H-12 — Tee Hinge Joint Steel
- 25 × H-16 — Lower Clamp Joint Steel
- 60 × H-17 — 45° Angle A Joint Steel
- 60 × H-18 — 45° Angle B Joint Steel
- 150 × H-2 — Inner Corner Joint Steel
- 10 × H-20 — Flat Pipe Metal Joint
- 30 × H-23 — Double Pipe Single Hinge Joint Steel
- 120 × H-3 — Outer Corner Joint Steel
- 150 × H-4 — Cross Junction Joint Steel
- 100 × H-5 — Pivot Point Joint Steel
- 110 × H-6 — Pivot Extension Steel
- 10 × H-6A — Extended Pivot Joint Steel
- 100 × H-90 — Round Joint Steel
- 2 × HAN-NIC — Handle
- 8 × HJ-DS — Pipe Mount Drop Stop – Zinc
- 8 × HJ-MS — Pipe Mount Start Steel – Zinc
- 100 × M6-12B — Bolt for HJ-15 Set
- 900 × M6-25B — Bolt for Joint Sets
- 2 × M6-25BHAN — Quick Release Lever Bolt
- 900 × M6-N — Nut for Joint Sets
- 56 × M8-45B — Bolt for 6″ and 8″ Casters White Zinc
- 56 × M8-N — Lock Nut for Caster White Zinc
- 164 × P-96-BL — Blue 8 ft PE Coated Steel Pipe
- 1 × POSTER-BOX — Poster 24”X36”
- 18 × R40-GUIDE — R40 8 ft Roller Track Lateral PVC Plastic Guide
- 96 × R40-MS — R40 Roller Track Mounting Bracket Start
- 48 × R40-RT96 — Roller Track Steel 40 mm x 8 ft ESD
- 16 × W-4ESB — 4″ Swivel Stem Caster with Brake
- 4 × W-4PSB — 4″ Swivel Plate Caster with Brake
- 4 × W-6PF — 6″ Rigid Plate Caster
- 6 × W-6PSB — 6″ Swivel Plate Caster with Brake
- 24 × WF-LARGE — Installation Bracket for 6″ and 8” Caster
- 4 × WF-LPLATE — Left Side Caster Plate Installation
- 4 × WF-RPLATE — Right Side Caster Plate Installation
| Weight (kg/lbs) | 1722.08 lb (781.122 kg) |
|---|---|
| Box Dimensions | Plywood box of 49 X 98 X 35 in (1219 mm X 2489 mm X 889 mm) |
