Flow Rack Structures Starter Kit
$0.00

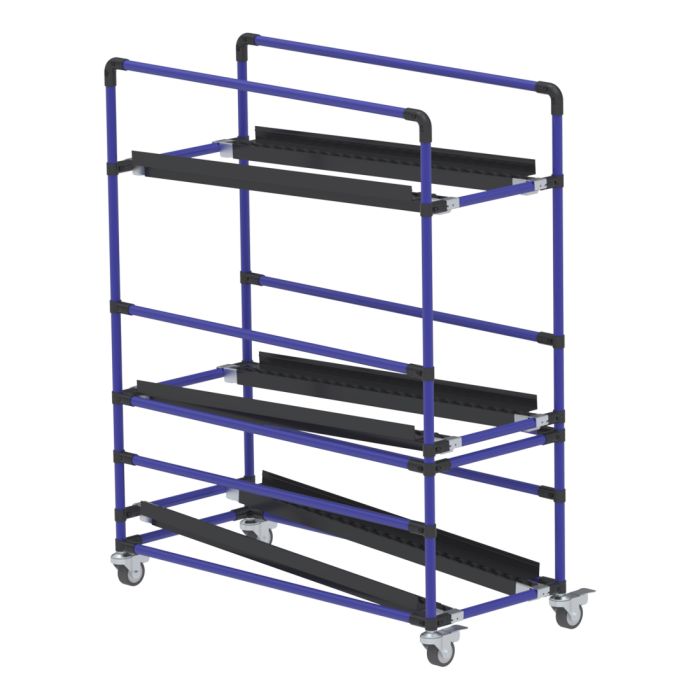

Everything you need in one box—pipes, connectors, wheels, and accessories—to quickly build a modular flow rack, or you can take the same parts and build your own fully, customized structures.
Description
Benefits
- Best way to ease your team into using this equipment – parts and plans in 1 package
- No more headaches of making sure that you have all the necessary parts
- No unnecessary leftover units
What’s included
- Most frequently used parts to build the structures, in sufficient quantity and ratio count
- Structure-specific components (e.g. conveyors for flow racks)
- Updated parts list (if applicable)
You will need
- Tool to cut your pipe to the desired length. If you don’t have any saw at your facility, we recommend the following tool to start: T-CUTTER
- For more information on which tools we recommend to build your project, read our blog articles Top 4 tools for cutting and Top 5 tools for assembling
Do you need to add a surface to your structure? See Deckings
List of Kit Products:
- 1 × POSTER-BOX — Poster 24”X36”
- 50 × P-96-BL — Blue 8 ft PE Coated Steel Pipe
- 30 × R40-RT96 — Roller Track Steel 40 mm x 8 ft ESD
- 42 × R40-MS — R40 Roller Track Mounting Bracket Start
- 4 × R40-TS — R40 Roller Track Mount Bracket with Tab Stop
- 42 × R40-DS — R40 Roller Track Mount Drop Stop
- 4 × R40-TC — R40 Roller Track Length Connector
- 4 × R40-GUIDE — R40 8 ft Roller Track Lateral PVC Plastic Guide
- 180 × H-1 — Standard Tee Joint
- 20 × H-2 — Inner Corner Joint Steel
- 16 × H-3 — Outer Corner Joint Steel
- 34 × H-4 — Cross Junction Joint Steel
- 32 × H-13 — Parallel Joint Steel
- 16 × H-17 — 45° Angle A Joint Steel
- 16 × H-18 — 45° Angle B Joint Steel
- 18 × AP-ICAP — Plastic End Cap for Pipes
- 10 × AF-ILEV — Inner Leveling Foot M12 Adjustable
- 170 × M6-25B — Bolt for Joint Sets
- 170 × M6-N — Nut for Joint Sets
- 24 × WF-UP — Installation Bracket for 4″ Caster – UPPER
- 24 × WF-LOW — Installation Bracket for 4″ Caster – LOWER
- 48 × M8-N — Lock Nut for Caster White Zinc
- 8 × W-4PSB — 4″ Swivel Plate Caster with Brake
- 4 × W-4PF — 4″ Rigid Plate Caster
- 10 × EP-96-ST — Stainless 8 ft Steel Pipe ESD
- 6 × R40-TU — R40 Roller Track Union Connector
- 16 × H-7 — Intersection Joint Steel
- 24 × HJ-MS — Pipe Mount Start Steel – Zinc
- 48 × M8-35B — Bolt for 4″ Caster White Zinc
- 1 × STARTER-BOX
- 200 × F-A858 — Self drilling screws #8 x 5/8″ to solidify joints
- 24 × HJ-DS — Pipe Mount Drop Stop – Zinc
| Box Quantity | 1 |
|---|---|
| Weight (kg/lbs) | 552.158 lb (250.455 kg) |
| Box Dimensions | Plywood box of 24 X 98 X 35 in (609.6 mm X 2489 mm X 889 mm) |
