AS-DIVIDER
Divider
$0.00
Fast Shipping quote upon checkout
In stock
Various payment methods available
Ready for dispatch upon order confirmation
Divider
$0.00
- Easy to install
- Create separations and divisions
- 200 units per box (please order individually)
Description

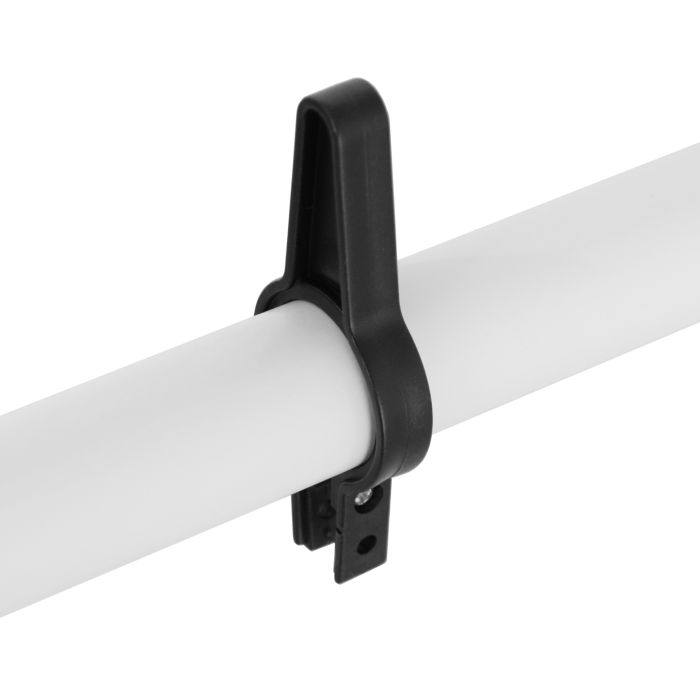

The AS-DIVIDER is a plastic accessory used to create a division.

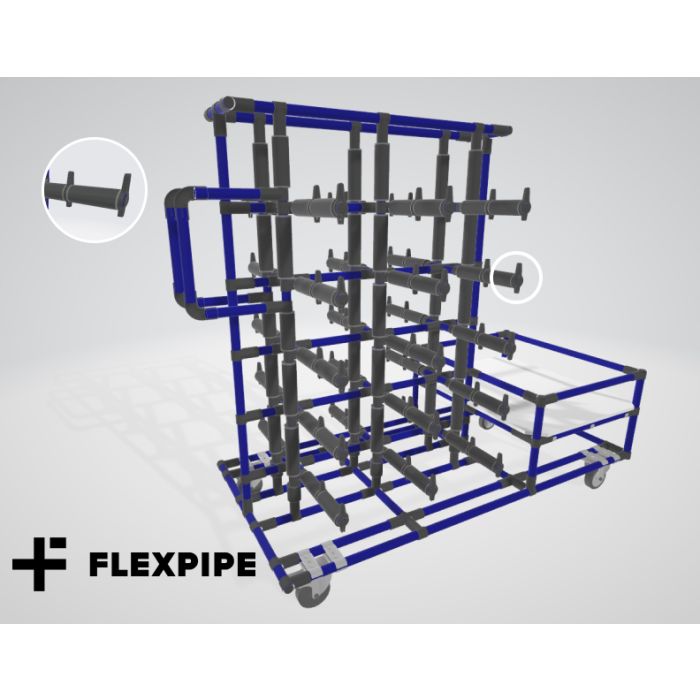

This item is ideal when you need to create a separation between odd shapes on racks and carts. This is frequently the case with curved parts.
The divider will act as a stopper, able to slide up and down the length of the pipe by hand if you apply enough pressure. This gives you the freedom to redefine the configuration of the separations instantly.
Installation Steps
See the installation steps tab to view how to install the AS-DIVIDER
Additional information
| ESD |
|---|
| Box Quantity | 200 |
|---|---|

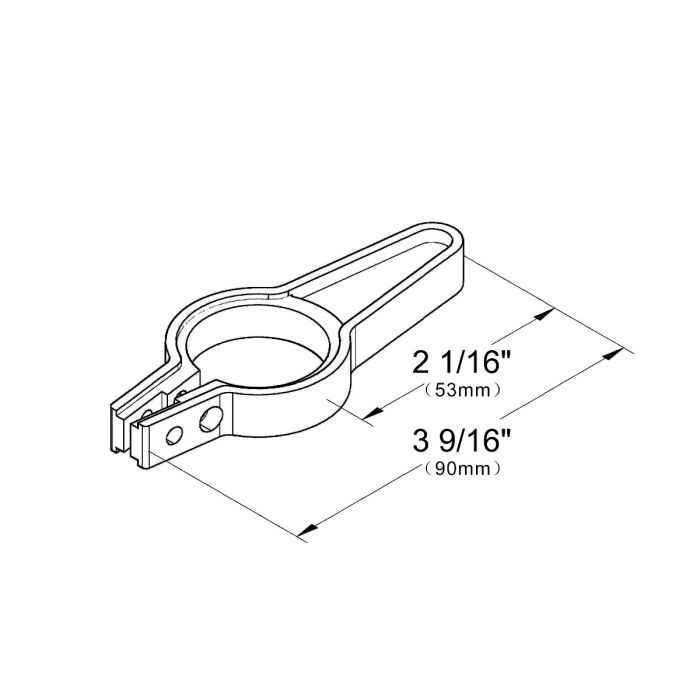

| Length | 1 3/8 in (35mm) |
| Height | 3 9/16 in (91mm) |
| Width | 3/8 in (10 mm) |
| Weight | 0.249 lb (0.245 kg) |
| Box Dimensions | Cardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm) |
| Common Usage | Create a division |
| Compatible brand | Flexpipe, Creform, Fastube |
| Non Compatible Brand | Trilogiq |
| Primary Material | Polyethylene (PE) |
| Temperature Resistance | -58°F to 185°F (-50°C to 85°C) |
| Electric Conductivity (ESD) | No |
- Ensure you have the following parts:
- 1x AS-DIVIDER
- 1x 28mm pipe of your choice
- 1x Screwdriver
- 1x Screw
- 1x Nut
- Clip the AS-DIVIDER around the P1 pipe.
- Place the bolt and the nut that comes with the AS-DIVIDER and insert them into the corresponding openings.
- Tighten completely the bolt and nut together until the AS-DIVIDER attaches firmly to the pipe.
