AS-CROSS
Swivel Cross Union
$0.00
Fast Shipping quote upon checkout
In stock
Various payment methods available
Ready for dispatch upon order confirmation
Swivel Cross Union
$0.00
- Union to connect and create a pivot between 2 tubes
- Compatible with 28mm pipes
- Needs to be fixed with F-A858
Description

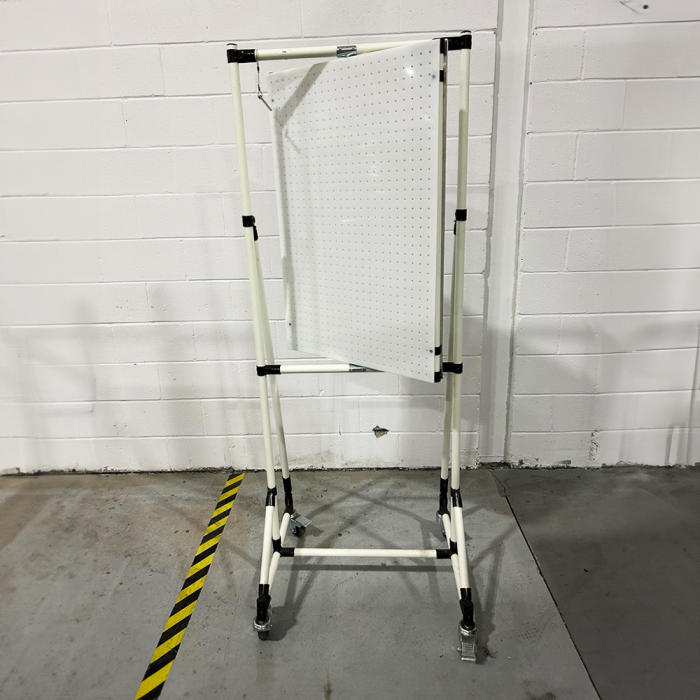

The AS-CROSS is your go-to solution for creating a pivot between two pipes making it perfect for a wide range of applications such as a scissor lift mechanism or a simple rotating board.

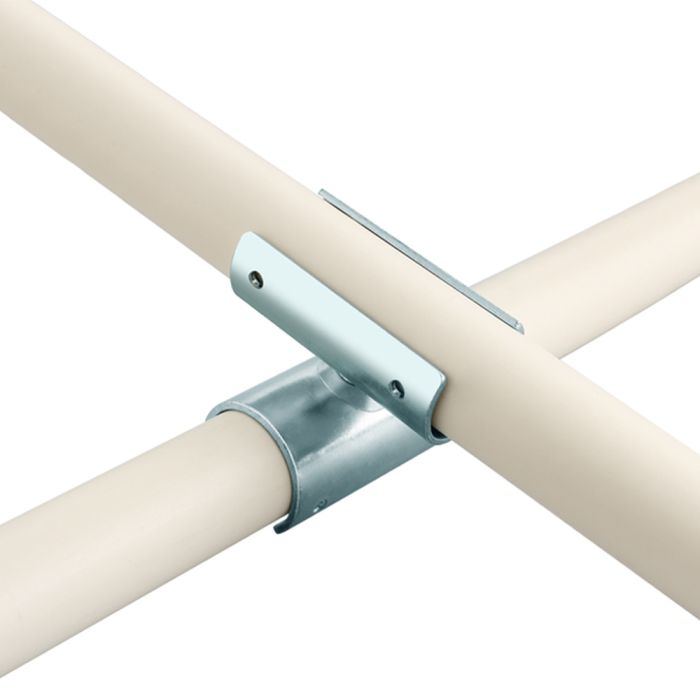

This zinc-plated metal component provides a reliable rotating union and is compatible with 28mm pipes.

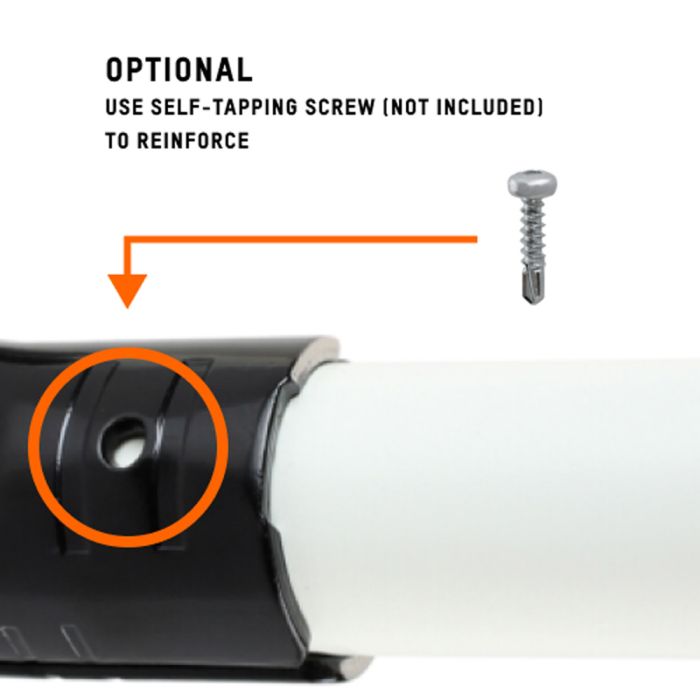

To ensure the stability and safety of your rotating mechanism, it is recommended to secure the AS-CROSS in place using our self-tap screws, specifically the F-A858.
Please note that the AS-CROSS is sold individually. However, some applications will require a second AS-CROSS to balance your rotating machanism.
| Box Quantity | 60 |
|---|---|

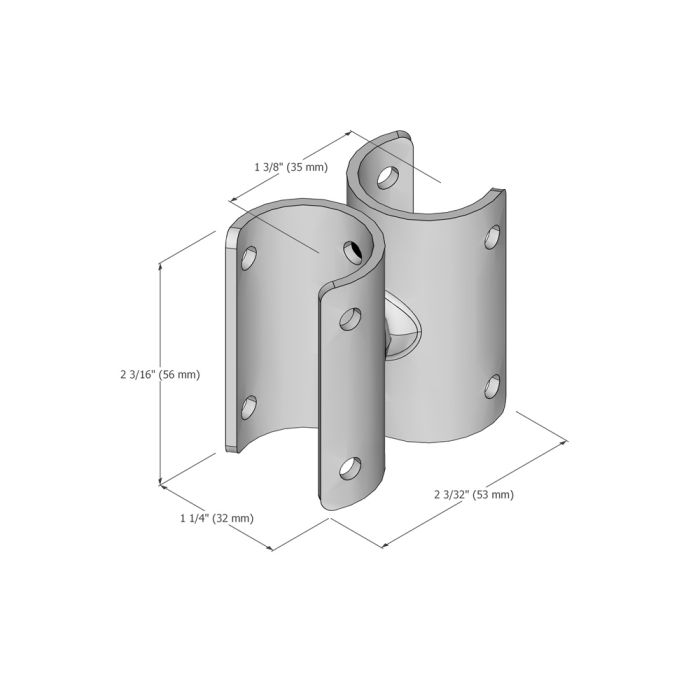

| Length | 2 3/32 in (53 mm) |
| Height | 2 3/16 in (56 mm) |
| Width | 1 1/4 in (32 mm) |
| Weight | 0.275 lb (0.125 kg) |
| Compatible brand | 2 3/16 in (56 mm) |
| Primary Material | Hot rolled steel (SPHC) |
