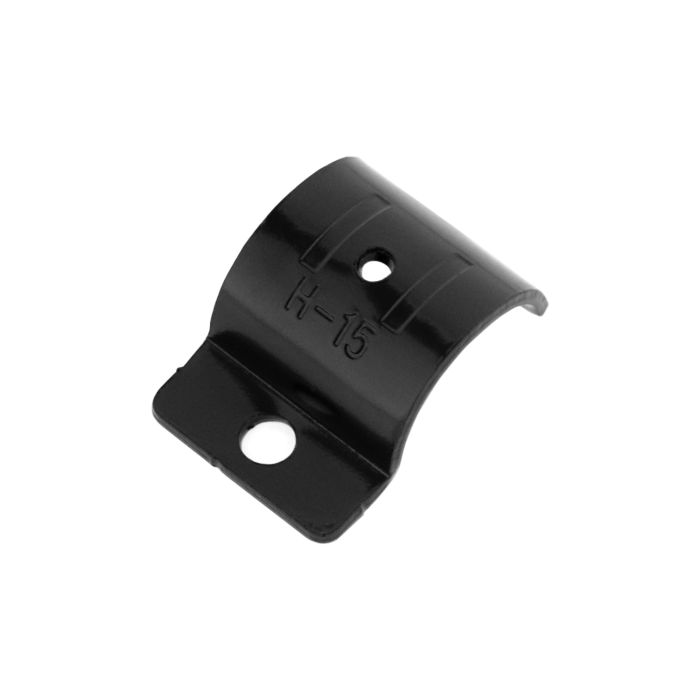

The H-15 is a black metal single joint used to assemble the account – HJ-15 | New Window joint set. This piece can be used to connect a pipe with a surface.

Technical Informations:

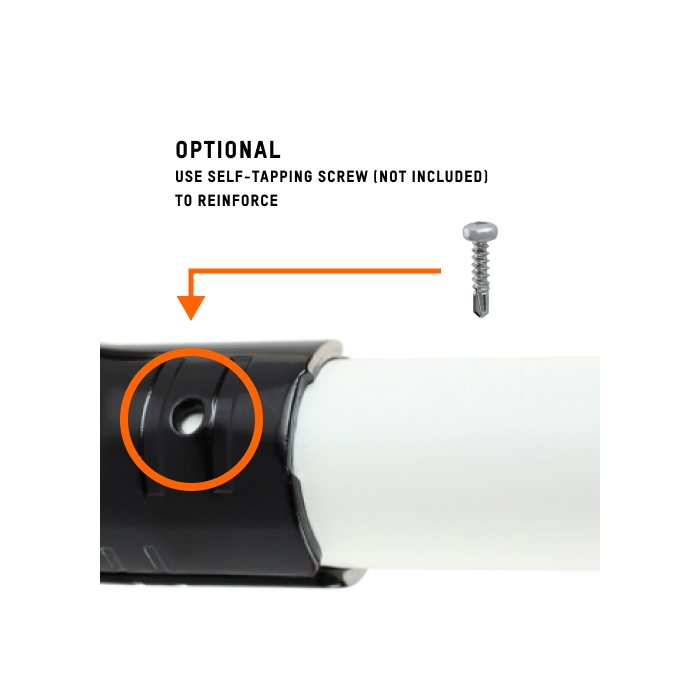

This connector is designed with 2 striations for a better on the plastic coating of the 28 mm pipes. It also includes an additional pre-drilled reinforcement holes to ensure extra strength to your structure. By adding a self-drilling screw account – F-A858 | New Window, you will solidify the connector joints positioned on a corner where there is a higher risk of impact.

ATTENTION
Make sure to choose the proper hardware to use with this part, since it is not used with the regular M6-25B bolt. The H-15 must be used with an account – H-16 | New Window lower clamp joint and an M6-12B | New Window bolt.

Antistatic Version (ESD):
An electric conductivity version if offered if you wish to build antistatic structures: account – H-15NP | New Window

Want to reuse parts of your old system?
The H-15 Flexpipe joint is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

All our joints are sold individually.
To make is easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system consider single amount only. Please enter the total amount of joint you wish to receive (example; 300 units = 1 box).
