KIT-STATION

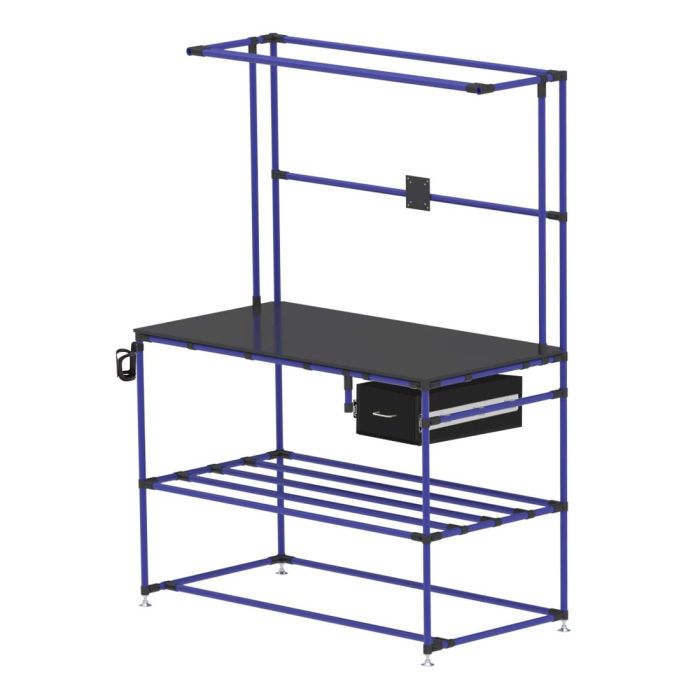

Workstation Structures Starter Kit
$0.00
Fast Shipping quote upon checkout
In stock
Various payment methods available
Ready for dispatch upon order confirmation
Workstation Structures Starter Kit
$0.00
Everything you need in one box—pipes, connectors, wheels, and accessories—to quickly build a workstation, or you can take the same parts and build your own fully, customized structures.
Description
Benefits
- Best way to ease your team into using this equipment – parts and plans in 1 package
- No more headaches of making sure that you have all the necessary parts
- No unnecessary leftover units
What’s included
- Most frequently used parts to build the structures, in sufficient quantity and ratio count
- Structure-specific components (e.g. conveyors for flow racks)
- Updated parts list (if applicable)
You will need
- Tool to cut your pipe to the desired length. If you don’t have any saw at your facility, we recommend the following tool to start: T-CUTTER
- For more information on which tools we recommend to build your project, read our blog articles Top 4 tools for cutting and Top 5 tools for assembling
ul>
Do you need to add a surface to your structure? See Deckings
List of Kit Products:
- 1 × POSTER-BOX — Poster 24”X36”
- 4 × AF-ILEV — Inner Leveling Foot M12 Adjustable
- 54 × AO-SHIM — Pipe Shim for Levelling Surface
- 30 × AO-EMT1 — EMT Pipe Clamp Single Mount
- 10 × AO-EMT2 — EMT Pipe Clamp Double Mount
- 1 × AW-HOLDER — Tool Holder Attachement
- 158 × M6-25B — Bolt for Joint Sets
- 160 × M6-N — Nut for Joint Sets
- 18 × H-9 — Flat Anchor Joint Steel
- 10 × H-12 — Tee Hinge Joint Steel
- 22 × H-13 — Parallel Joint Steel
- 2 × H-15 — Upper Clamp Joint Steel
- 2 × H-16 — Lower Clamp Joint Steel
- 4 × H-23 — Double Pipe Single Hinge Joint Steel
- 8 × AP-HINGE — Plastic Hinge Sleeve for Pipe Joints
- 4 × AF-ILEV — Inner Leveling Foot M12 Adjustable
- 1 × AS-REST — Pipe Rest Type U
- 1 × FL-COU14-100LBS — 14″ Drawer Slide Pairs – 100 lb Max
- 6 × FL-COU-U — Drawer Slide Stabilizer Bracket for 28 mm Pipes
- 2 × AW-ROLLER — Pipe Trolley Roller Double Hook
- 2 × M6-12B — Bolt for HJ-15 Set
- 4 × WF-UP — Installation Bracket for 4″ Caster – UPPER
- 4 × WF-LOW — Installation Bracket for 4″ Caster – LOWER
- 8 × M8-35B — Bolt for 4″ Caster White Zinc
- 8 × M8-N — Lock Nut for Caster White Zinc
- 4 × W-4PSB — 4″ Swivel Plate Caster with Brake
- 1 × STARTER-BOX
- 200 × F-A858 — Self drilling screws #8 x 5/8″ to solidify joints
- 100 × F-SF81 — Self drilling screws #8 x 1″ to install panels
- 200 × F-S812 — Square screws #8 x 1/2″ to install accessories
- 1 × D-HDPEW-4812 — 1/2″ White HDPE Sheet 48″ x 96″
- 1 × D-PEGW-4814 — 1/4″ White HDPE Peg Board Sheet 48″ x 96″
- 1 × D-5SFOAM2040 — 5s Kaizen Foam 13 layers 2.4″ x 20″ x 40″
- 1 × AW-DUCT — PVC Wiring Duct 6 ft
- 1 × AW-PEG — Modular Peg Hooks
- 1 × AW-CUP — Workstation Cup Holder
| Box Quantity | 1 |
|---|---|
| Weight (kg/lbs) | 553.933 lb (251.26 kg) |
| Box Dimensions | Plywood box of 49 X 98 X 35 in (1219 mm X 2489 mm X 889 mm) |
