KIT-CART
Cart Structures Starter Kit
$0.00
Fast Shipping quote upon checkout
In stock
Various payment methods available
Ready for dispatch upon order confirmation

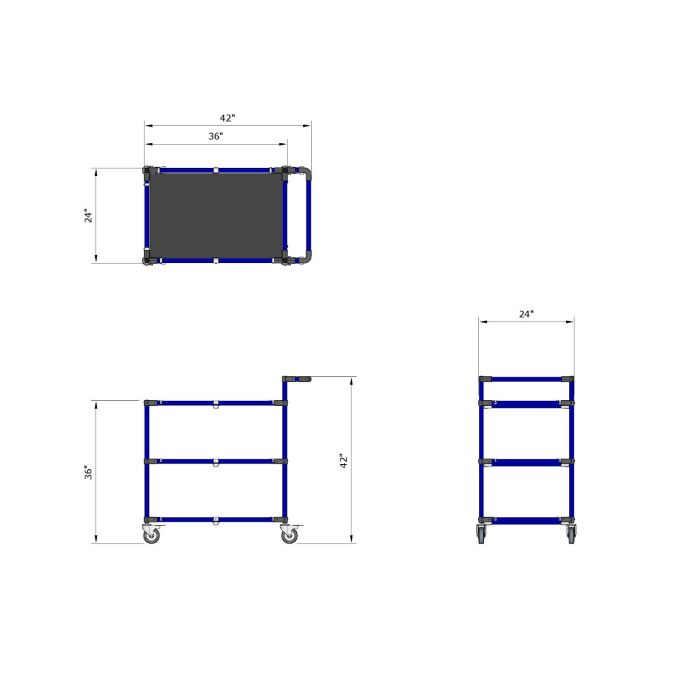

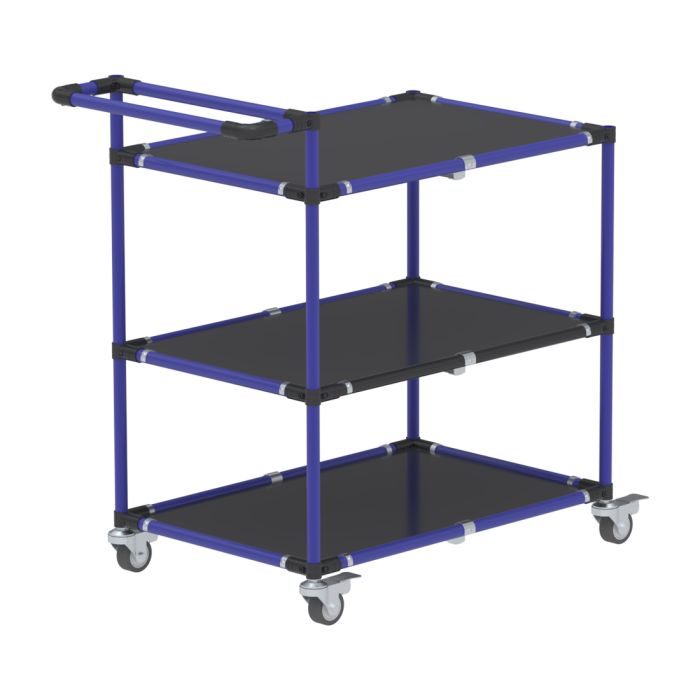

Cart Structures Starter Kit
$0.00
Everything you need in one box—pipes, connectors, wheels, and accessories—to quickly build a modular cart, or you can take the same parts and build your own fully, customized structure.
Description
Benefits
- Best way to ease your team into using this equipment – parts and plans in 1 package
- No more headaches of making sure that you have all the necessary parts
- No unnecessary leftover units
What’s included
- Most frequently used parts to build the structures, in sufficient quantity and ratio count
- Structure-specific components (e.g. conveyors for flow racks)
- Updated parts list (if applicable)
You will need
- Tool to cut your pipe to the desired length. If you don’t have any saw at your facility, we recommend the following tool to start: T-CUTTER
- For more information on which tools we recommend to build your project, read our blog articles Top 4 tools for cutting and Top 5 tools for assembling
Do you need to add a surface to your structure? See Deckings
List of Kit Products:
- 1 × POSTER-BOX — Poster 24”X36”
- 22 × H-4 — Cross Junction Joint Steel
- 16 × H-13 — Parallel Joint Steel
- 4 × H-23 — Double Pipe Single Hinge Joint Steel
- 8 × H-90 — Round Joint Steel
- 20 × AP-ICAP — Plastic End Cap for Pipes
- 26 × AO-SHIM — Pipe Shim for Levelling Surface
- 6 × AO-EMT1 — EMT Pipe Clamp Single Mount
- 12 × AO-EMT2 — EMT Pipe Clamp Double Mount
- 16 × AI-CORNER — Corner-Reinforcing Bracket
- 8 × AI-CENTER — Slide Pipe Mounting Bracket Drop Stop
- 1 × D-HSCORG-48516 — 5/16″ Heavy Duty PP Honeycomb Board 48″ x 96″
- 1 × D-HDPEW-4814 — 1/4″ White HDPE Sheet 48″ x 96″
- 180 × M6-25B — Bolt for Joint Sets
- 180 × M6-N — Nut for Joint Sets
- 16 × WF-UP — Installation Bracket for 4″ Caster – UPPER
- 16 × WF-LOW — Installation Bracket for 4″ Caster – LOWER
- 48 × M8-N — Lock Nut for Caster White Zinc
- 4 × W-3ESB — 3″ Swivel Stem Caster with Brake
- 6 × W-4ESB — 4″ Swivel Stem Caster with Brake
- 2 × W-4EF — 4″ Rigid Stem Caster
- 6 × W-4PSB — 4″ Swivel Plate Caster with Brake
- 2 × W-4PF — 4″ Rigid Plate Caster
- 1 × FL-COU24-100LBS — 24″ Drawer Slide Pairs – 100 lb Max
- 8 × FL-COU-U — Drawer Slide Stabilizer Bracket for 28 mm Pipes
- 16 × WF-LARGE — Installation Bracket for 6″ and 8” Caster
- 32 × M8-35B — Bolt for 4″ Caster White Zinc
- 16 × M8-45B — Bolt for 6″ and 8″ Casters White Zinc
- 2 × W-6PSB — 6″ Swivel Plate Caster with Brake
- 2 × W-6PF — 6″ Rigid Plate Caster
- 1 × STARTER-BOX
- 200 × F-A858 — Self drilling screws #8 x 5/8″ to solidify joints
- 200 × F-SF81 — Self drilling screws #8 x 1″ to install panels
- 100 × F-S812 — Square screws #8 x 1/2″ to install accessories
- 2 × WF-LPLATE — Left Side Caster Plate Installation
- 2 × WF-RPLATE — Right Side Caster Plate Installation
| Box Quantity | 1 |
|---|---|
| Weight (kg/lbs) | 570.114 lb (258.599 kg) |
| Box Dimensions | Plywood box of 49 X 98 X 35 in (1219 mm X 2489 mm X 889 mm) |
