AF-CSM
Corner Stanchion Mount
$0.00
Fast Shipping quote upon checkout
Out of stock
Various payment methods available
Ready for dispatch upon order confirmation

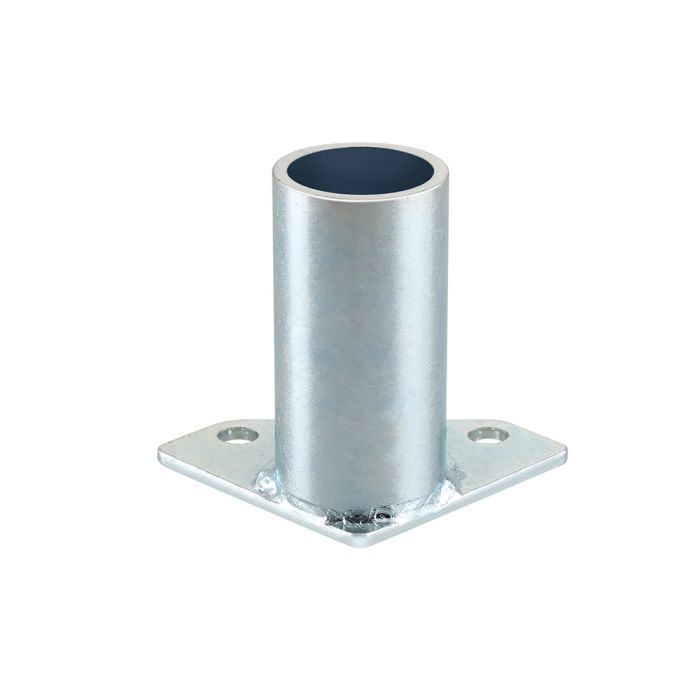

Corner Stanchion Mount
- Specialized corner mount for merging Flexpipe with 80/20 aluminum profiles
- Ideal for restricted corner installations and space-saving applications
- Steel construction with 360° welded bushing
Description
Purpose-built steel corner mount designed to integrate Flexpipe systems with 80/20 aluminum extrusions in confined spaces. This enhanced corner stanchion mount features a fully welded steel bushing and reinforced base plate for secure corner connections.
Key Benefits:
- Direct compatibility with 80/20 aluminum profiles
- Extended 28 mm bushing for secure pipe connection
- Dual 8 mm mounting holes for stable anchoring
- 5 mm hole for self-tapping screw and pipe security
- 360° welded construction for maximum strength
- Space-efficient corner mounting design
Ideal for corner installations where standard mounts won’t fit, perfect for connecting Flexpipe structures to 80/20 aluminum workstations or floor-mounted applications.

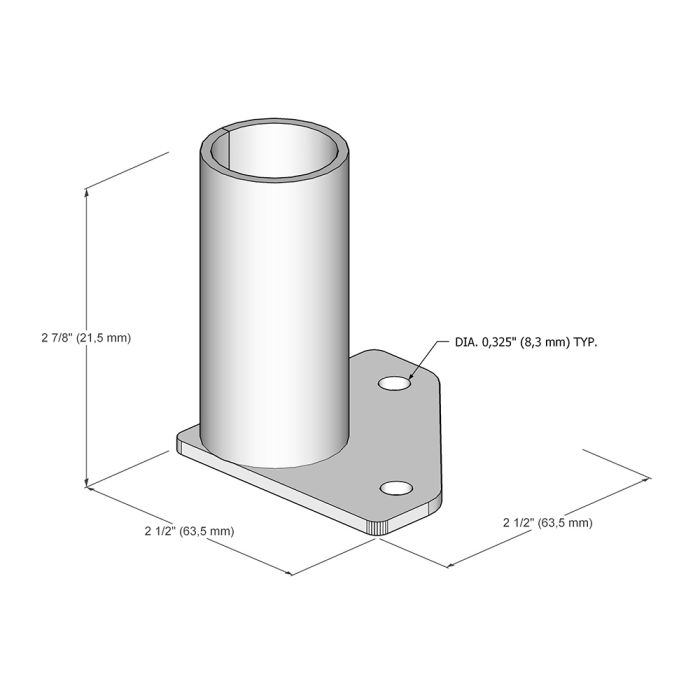

| Box Quantity | 30 |
|---|---|
| Length | 2-1/2 in (63 mm) |
| Height | 2-13/16 in (72 mm) |
| Width | 2-1/2 in (63 mm) |
| Weight | 0.52 lb (0.235 kg) |
| Box Dimensions | Cardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm) |
| Common Usage | Mounting 28mm pipe with aluminium profile |
| Compatible brand | Creform, NIS, Ctek |
| Non Compatible Brand | Trilogiq |
| Temperature Resistance | -58°F to 185°F (-50°C to 85°C) |
| Frequency of Use | Rare |
| Electric Conductivity (ESD) | Yes |
