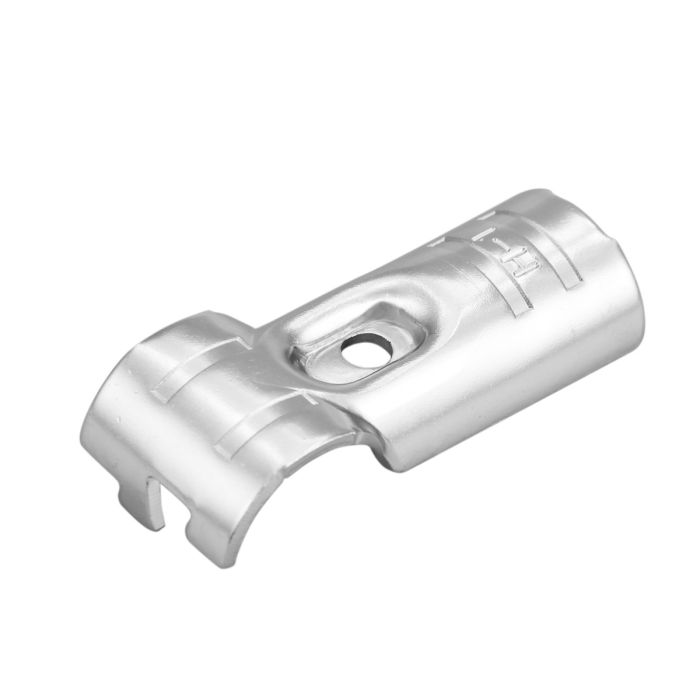

The H-1NP is a chrome-plated single joint with antistatic properties (ESD) used to assemble the account – HJ-1NP | New Window joint set. This piece is one of the easiest and fastest to assemble.

We suggest you to always have a box of H-1 or H-1NP in inventory since it is the connector used in 95% of the structures. If you would like to keep an inventory of the Flexpipe parts, this video – YouTube | New Window could help you know the percentage of each part we suggest to order according to your needs.

Technical Information:

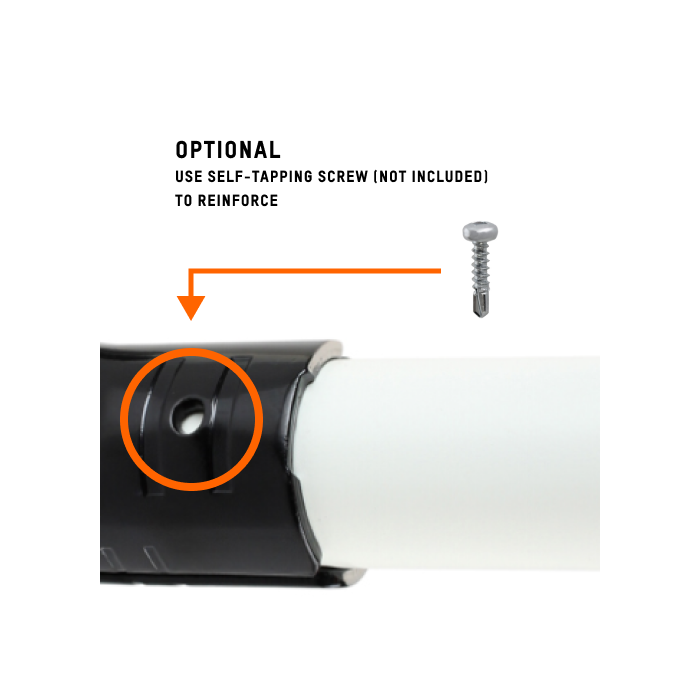

This connector is designed with 4 striations for a better on the plastic coating of the 28 mm pipes. It also includes 2 additional pre-drilled reinforcement holes to ensure extra strength to your structure. By adding a self-drilling screw account – F-A858 | New Window, you will solidify the connector joints positioned on a corner where there is a higher risk of impact.

Non-Electric Conductivity Version:
A black version of this item if offered without antistatic properties: account – H-1 | New Window

Want to reuse parts of your old system?
The H-1NP Flexpipe joint is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

All our joints are sold individually.
To make it easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system considers single amount only. Please enter the total amount of joint you wish to receive (example; 225 units = 1 box).
